Torsion Testing Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-SOMLE-8905

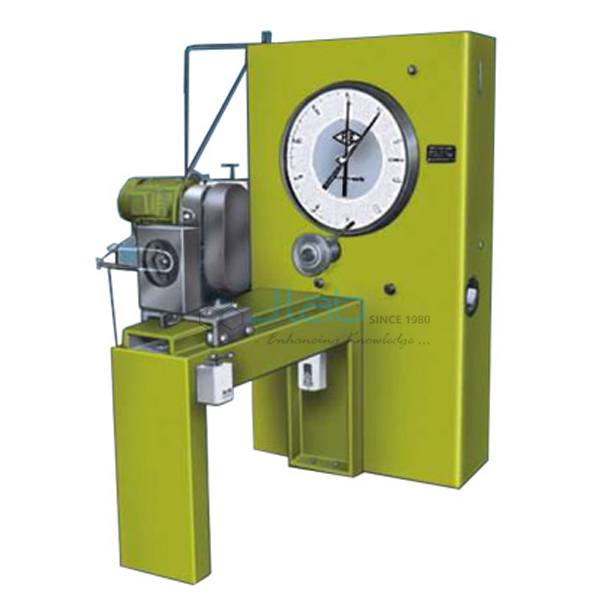

The Torsion Testing Machine (SKU JA-SOMLE-8905) is a torsion testing machine for torsion and twist tests on metal wires, tubes and sheet materials. Torque is applied through a geared motor and gearbox and measured by a pendulum dynamometer system, with adjustable torque ranges and a torsional speed of 0.1/0.2 rpm. An autographic recorder for the torque against angle of twist relationship can be provided on request. It is supplied by JaincoLab for strength of materials labs.
Specifications
The machine applies torque by geared motor and gearbox, measures it with a pendulum dynamometer, runs at 0.1/0.2 rpm and has adjustable torque ranges; maximum torque capacity is confirmed on the quotation.
| Product | Torsion Testing Machine |
| SKU | JA-SOMLE-8905 |
| Tests | Torsion and twist tests on metal wire, tubes and sheet |
| Torque measurement | Pendulum dynamometer system |
| Drive | Geared motor through gearbox; torque compensated motors |
| Torsional speed | 0.1 / 0.2 rpm |
| Torque ranges | Adjustable; 3 or 4 ranges optional; auto range selection optional |
| Other | Load-unload capability; variable speed drive optional; autographic recorder on request |
| Maximum torque capacity | Confirmed on the quotation |
Applications of the torsion testing machine
The torsion tester is used to find how shafts and wires resist twisting, letting students plot torque against angle of twist and calculate modulus of rigidity and shear strength.
- Torsion test on mild steel and other metal specimens
- Modulus of rigidity from torque and angle of twist
- Shear stress at failure
- Twist tests on wires and tubes
- Strength of materials practicals in B.Tech and diploma courses
Scope of supply and ordering
The listing covers the torsion testing machine as described; the optional ranges, variable speed drive and autographic recorder are quoted as selected. Accessories, spares and quantities are confirmed on the quotation.
There is no fixed MOQ on this listing: minimum quantity, lead time and packing are stated on the quotation for your order size and destination. Bulk college, polytechnic and tender orders are supplied.
Frequently asked questions
How is torque measured?
By a pendulum dynamometer system.
What is the torsional speed?
0.1 / 0.2 rpm.
Can the torque-twist relationship be recorded?
Yes. An autographic recorder can be provided on specific request.
