Ultrasonic Flaw Detector Manufacturer,Supplier and Exporter in India
Product Code : JA-SOMLE-8923

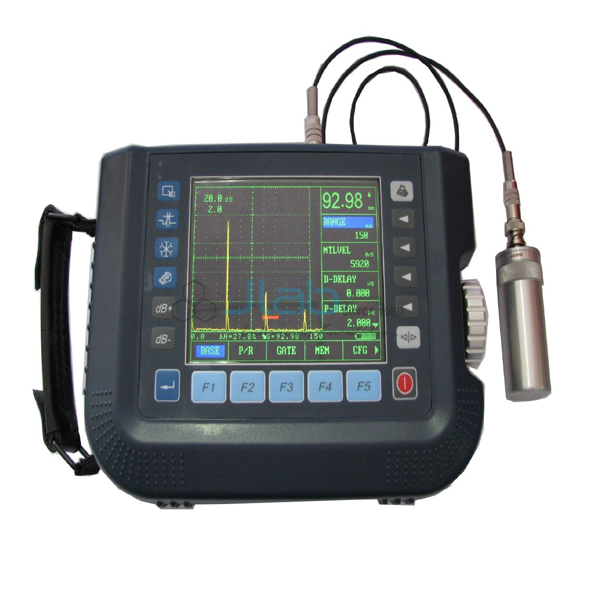

The Ultrasonic Flaw Detector (SKU JA-SOMLE-8923) is an ultrasonic flaw detector for finding internal defects and measuring thickness in metals by pulse-echo testing. A variable square wave pulser optimises transducer performance, and probe sensitivity is raised by pulse width variation. It covers 1 to 35 MHz in 5 bands and a test range of 1 to 20000 mm at steel velocity, with 20 stored calibrations and 2000 thickness readings. It is supplied by JaincoLab for NDT and materials labs.
Specifications
The flaw detector covers 1-35 MHz in 5 bands, tests 1-20000 mm at steel velocity, stores 20 calibrations and 2000 thickness readings and operates from -10 to 55 degC; the probe set is listed below.
| Product | Ultrasonic Flaw Detector |
| SKU | JA-SOMLE-8923 |
| Pulser | Variable square wave; pulse width variation for probe sensitivity |
| Frequency range | 5 bands, 1 MHz to 35 MHz |
| Test range | 1 to 20000 mm at steel velocity |
| Panel memory | 20 stored calibrations |
| Thickness logging | 2000 stored readings |
| Operating temperature | -10 to 55 degC |
| Angle probes | 4.3 MHz and 2.25 MHz single crystal, medium damped |
| Twin probes | 5, 2.25 and 1.25 MHz, 2 x 8 x 4 crystal, medium damped |
| Straight probes | 10 MHz 10 mm medium damped; 2.25 MHz and 5 MHz 10 mm high damped |
Applications of the ultrasonic flaw detector
In an NDT or materials lab the flaw detector is used to locate cracks, voids and inclusions inside welds and castings and to measure wall thickness, without damaging the part.
- Weld inspection with angle probes
- Detection of laminations and inclusions in plate
- Thickness measurement and logging
- Calibration on reference blocks
- Non-destructive testing practicals in B.Tech, diploma and NDT training courses
Scope of supply and ordering
The listing covers the ultrasonic flaw detector and the probe types listed in the product data. Couplant, cables and calibration blocks are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Each quotation confirms the MOQ, lead time and packing for this item against the quantity ordered and the delivery destination. Orders for a single laboratory as well as multi-laboratory sets for new institutions are supplied.
Frequently asked questions
What frequency range does it cover?
1 MHz to 35 MHz in 5 bands.
What is the test range?
1 to 20000 mm at steel velocity.
Can it store data?
Yes. It stores 20 calibrations and logs 2000 thickness readings.
Which probes are listed?
Angle, twin-crystal and straight contact probes from 1.25 to 10 MHz; send SKU JA-SOMLE-8923 with the probes you need for a quotation.
