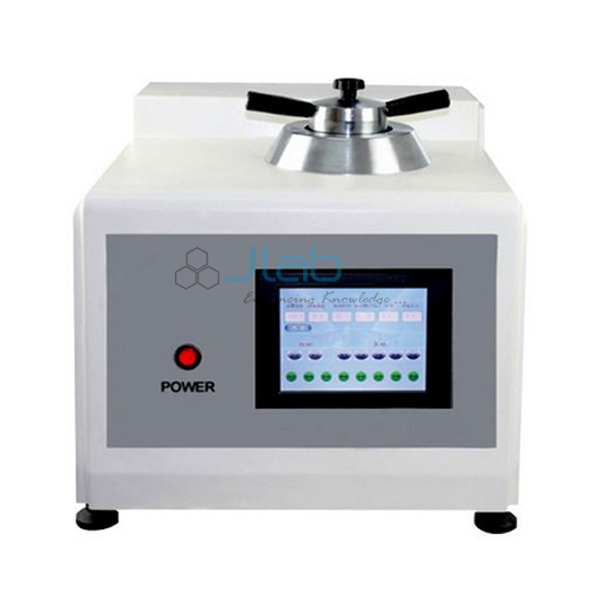

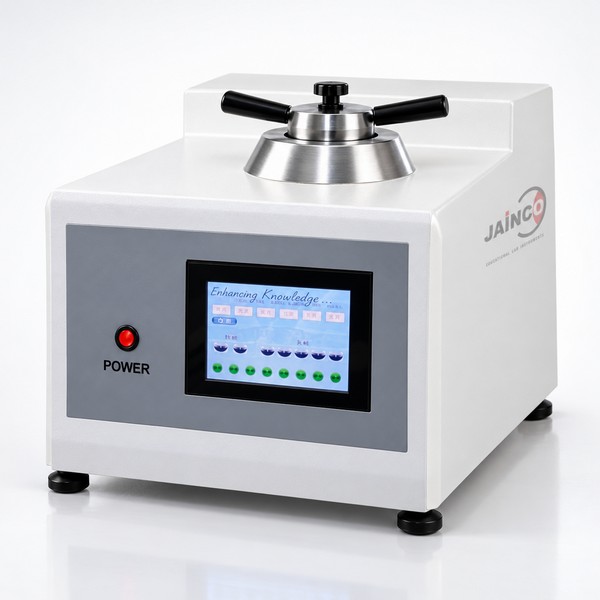

Automatic Mounting Press

Product Code : JA-ME-7355
Jainco Lab is a leading Automatic Mounting Press Manufacturer,and suppliers in India, Automatic Mounting Press Manufacturer,and suppliers in South Africa, Automatic Mounting Press Algeria (Algiers), Automatic Mounting Press Angola (Luanda), Automatic Mounting Press Argentina (Buenos Aires), Automatic Mounting Press Armenia (Yerevan), Automatic Mounting Press Australia (Canberra), Automatic Mounting Press Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Automatic Mounting Press
Technical Specifications:
Pressure: 0~2MPa product pressure: 0~72MPa.
Shortest mounting time: 15 minutes.
Mould diameter (can be randomly selected 2 types): 25mm, 30mm, 40mm, 50mm.
Mounting temperature: 50-300°C.
Heating power: 1000W.
Voltage: 220V.
Weight: 120Kg.
Dimension: 630-520-520mm.

Features:
Microcomputer control, automatic Pre-heating, heating, applying pressure, cooling, etc.
Water-forced cooling, quickly get the sample.
Two demos can be done simultaneously.
Pressure, temperature, heating and cooling time can be set via touch screen.
Large size touch screen LCD, graphical HMI for friendly and easy operation.
Four kinds diameter moulds (25mm 30mm 40mm 50mm) can be chosen, easily change.
