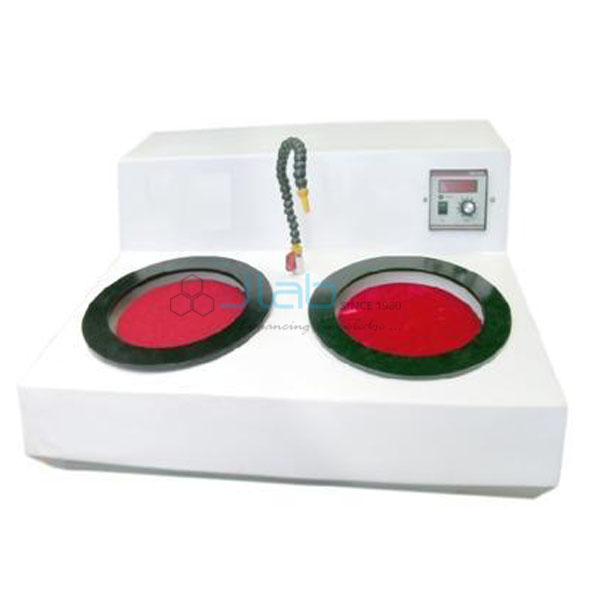

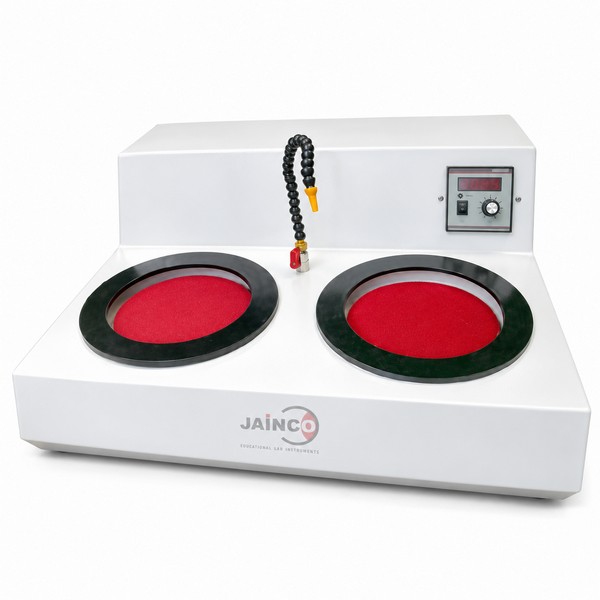

Digital Polishing Machine (Table top) Manufacturer,Supplier and Exporter in India
Product Code : JA-ME-7367
The Digital Polishing Machine (Table top) (SKU JA-ME-7367) polishes metallographic specimens so that their structure can be observed under a microscope. It has a fully moulded FRP body, continuously variable speed and a quick-change 8 inch disc, so emery papers of different grits and polishing cloths can be used in the required steps. This digital polishing machine uses a 1/2 HP high-torque DC motor with thyristor control and a digital speed indicator from 50 to 1200 rpm.
Specifications
The digital polishing machine is specified by an 8 inch disc (10 inch optional), a 1/2 HP high-torque DC motor, thyristor speed control and a digital speed indicator reading 50 to 1200 rpm, in a moulded FRP body.
| Product | Digital Polishing Machine (Table top) |
| SKU | JA-ME-7367 |
| Disc | 8 in standard; 10 in option; quick-change design |
| Motor | 1/2 HP high-torque DC motor |
| Speed control | Thyristor controlled, continuously variable |
| Speed indicator | Digital, 50 to 1200 rpm |
| Body | Fully moulded FRP with easy disc change |
| Design | Table top |
Applications of the digital polishing machine
The machine is used in metallography practicals and quality checks to take ground specimens to a polished finish, with the digital speed readout letting each step be repeated at the same speed.
- Metallography practicals in engineering colleges and polytechnics
- Microstructure study of ferrous and non-ferrous specimens
- Quality-control and heat-treatment labs
- Final polishing on cloth after emery grinding
Scope of supply and ordering
The listing covers the Digital Polishing Machine (Table top) with one 8 inch disc; a 10 inch disc is optional. Papers and cloths are ordered separately.
Frequently asked questions
What speed range does it offer?
Continuously variable speed shown on a digital indicator from 50 to 1200 rpm.
What disc sizes can be used?
8 inch as standard, with a 10 inch option.
What is the body made of?
A fully moulded FRP body with an easy disc-change design.
