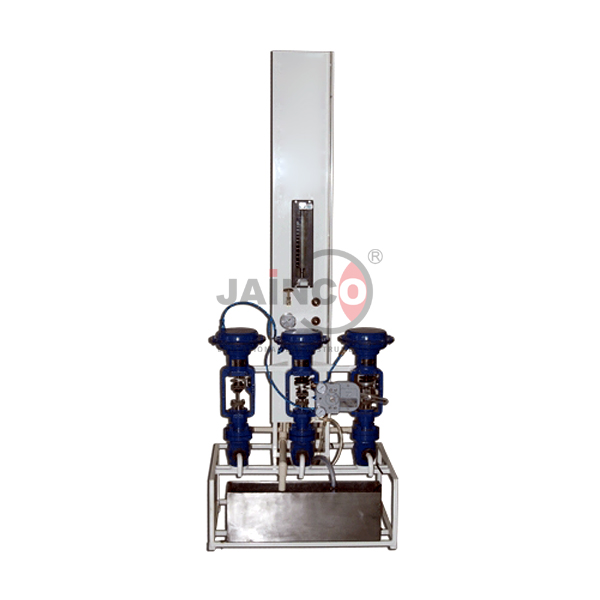

The Control Valve Characteristics Apparatus (SKU JC-PCTE-9472) is a process control laboratory set-up for studying how pneumatic control valves behave. It has linear and equal percentage pneumatic control valves, stainless steel water tanks with a pump for continuous circulation, a rotameter for flow measurement and a manometer for valve inlet pressure, all piped on a painted MS structure. JaincoLab manufactures this control valve characteristics apparatus in India for chemical, instrumentation and mechanical engineering laboratories.
Specifications
The apparatus combines linear and equal percentage pneumatic control valves, an air regulator with pressure gauge, a rotameter, an inlet manometer and stainless steel water tanks with a circulating pump, mounted with piping and fittings on a painted MS structure.
| Product | Control Valve Characteristics Apparatus |
| SKU | JC-PCTE-9472 |
| Control valves | Pneumatic, linear and equal percentage type |
| Flow measurement | Rotameter |
| Inlet pressure measurement | Manometer |
| Air supply | Air regulator with pressure gauge |
| Water circulation | Stainless steel water tanks with pump |
| Structure | Painted MS structure with piping and fittings |
Experiments with the control valve characteristics apparatus
Students set the air signal to each valve, record flow on the rotameter and inlet pressure on the manometer, and plot the valve characteristics from the readings.
- Flow coefficient (Cv) of a control valve
- Hysteresis of a control valve
- Inherent characteristics of linear and equal percentage valves
- Installed characteristics of a control valve
- Rangeability of a control valve
Scope of supply and ordering
This listing covers the complete apparatus with both control valves, tanks, pump, rotameter, manometer, air regulator and pressure gauge on the MS structure. Compressor, electrical supply details and valve sizes are also confirmed on the quotation.
Single units for one workshop and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
Which valve types are included?
Pneumatic control valves of linear and equal percentage type.
Which experiments can be performed?
Flow coefficient (Cv), hysteresis, inherent and installed characteristics, and rangeability of the control valve.
Does the apparatus need compressed air?
Yes, the valves are pneumatic and the air supply is set with the air regulator and pressure gauge; the compressor is confirmed on the quotation.
