Temperature Process Control System Manufacturer,Supplier and Exporter in India
Product Code : JA-PCTE-9914

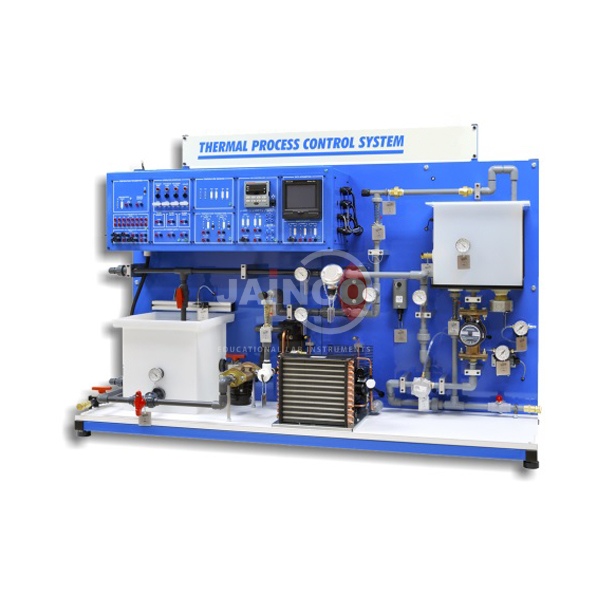

The Temperature Process Control System (SKU JA-PCTE-9914) is a thermal process control trainer in which components are plumbed in two water circuits - a process loop and a heating loop - to control the temperature of the water flowing in the process loop. It is built on a welded steel workstation, and learners calibrate, adjust, install, operate and tune the thermal control system. This temperature process control trainer is supplied by JaincoLab for instrumentation, chemical and mechanical engineering laboratories.
Specifications
The trainer has a welded steel workstation with a process loop and a heating loop, and its electrical components are wired to a control panel for measuring signals and connecting control configurations; heater rating, sensors and power supply are confirmed on the quotation.
| Product | Temperature Process Control System |
| SKU | JA-PCTE-9914 |
| Type | Temperature process control training system |
| Workstation | Welded steel |
| Water circuits | Process loop and heating loop |
| Controlled variable | Temperature of water in the process loop |
| Control panel | Electrical components wired to the panel for signal measurement and configuration |
Applications of the temperature process control trainer
Learners heat the process loop through the heating circuit, measure temperatures at the panel and tune the controller so the process water holds its set point.
- Calibrating temperature transmitters
- Tuning PI and PID temperature loops
- Installing and operating a thermal process loop
- Studying heat transfer between heating and process circuits
- Process control practicals in instrumentation and chemical engineering
Scope of supply and ordering
This listing covers the temperature process control system with the workstation, process and heating loops and control panel as described.
Frequently asked questions
How is the water temperature controlled?
A heating loop transfers heat to a separate process loop, whose water temperature is controlled.
What skills does it teach?
Calibrating, adjusting, installing, operating and tuning thermal process control systems.
How are signals measured?
The electrical components are connected to the control panel so students can measure signals and build control configurations.
