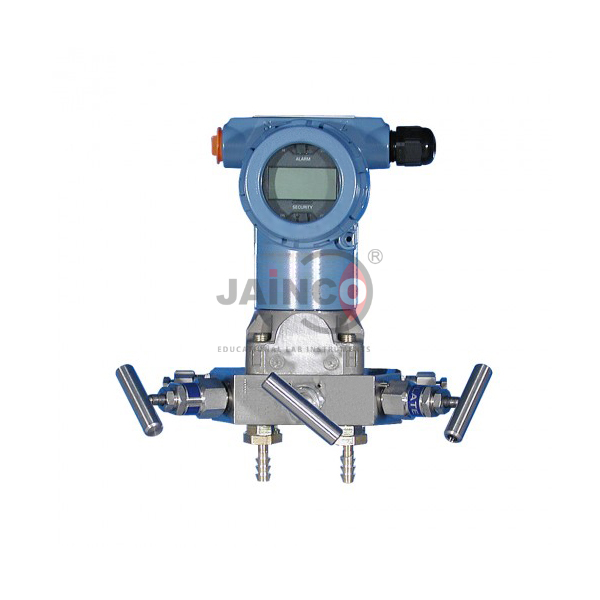

Smart Flow Transmitter Learning System Manufacturer,Supplier and Exporter in India
Product Code : JC-PCTE-9474
The Smart Flow Transmitter Learning System (SKU JC-PCTE-9474) is a process control add-on that provides a 4-20 mA feedback signal proportional to flow rate, measured by transducers that sense differential pressure. The transmitter mounts on the workstation console of a process control trainer and connects to three optional flow transducers: pitot tube, venturi and orifice plate. Student learning materials for theory and lab are included. It is supplied by JaincoLab for instrumentation and process control laboratories.
Specifications
The system comprises a differential pressure flow transmitter with a 4-20 mA output and student learning materials, for mounting on a process control workstation console; the pitot tube, venturi and orifice plate transducers are optional.
| Product | Smart Flow Transmitter Learning System |
| SKU | JC-PCTE-9474 |
| Type | Smart flow transmitter add-on |
| Output | 4-20 mA, proportional to flow rate |
| Sensing | Differential pressure |
| Optional flow transducers | Pitot tube, venturi, orifice plate |
| Mounting | Workstation console of a process control trainer |
| Documentation | Student learning materials, student reference guide |
Applications of the smart flow transmitter trainer
Learners connect the transmitter to a differential pressure flow element, calibrate the 4-20 mA output against flow and use the signal as feedback in a flow control loop.
- Differential pressure flow measurement
- Calibrating a 4-20 mA flow transmitter
- Comparing pitot tube, venturi and orifice plate elements
- Closing a flow control loop with transmitter feedback
- Instrumentation technician and engineering practicals
Scope of supply and ordering
This listing covers the smart flow transmitter with its student learning materials. The optional pitot tube, venturi and orifice plate transducers are quoted separately.
Frequently asked questions
What signal does the transmitter give?
A 4-20 mA feedback signal proportional to the measured flow rate.
Which flow elements can it use?
Three optional transducers: pitot tube, venturi and orifice plate.
Does it work on its own?
It adds to a process control trainer and mounts on the workstation console.
Related products
- Level and Flow Process Control Learning System
- Analytical Process Control System
- Foundation Fieldbus Process Control System
- Control Valve Characteristics Apparatus
More workshop tools and machines are listed in the mechanical engineering lab equipment range from JaincoLab.
Request a quote
Send an enquiry for the Smart Flow Transmitter Learning System (SKU JC-PCTE-9474) with the quantity and delivery destination using the JaincoLab contact page or by email to [email protected]. Buying under a laboratory tender? Use our tenders page.
