Level and Flow Process Control Learning System Manufacturer,Supplier and Exporter in India
Product Code : JA-PCTE-9912

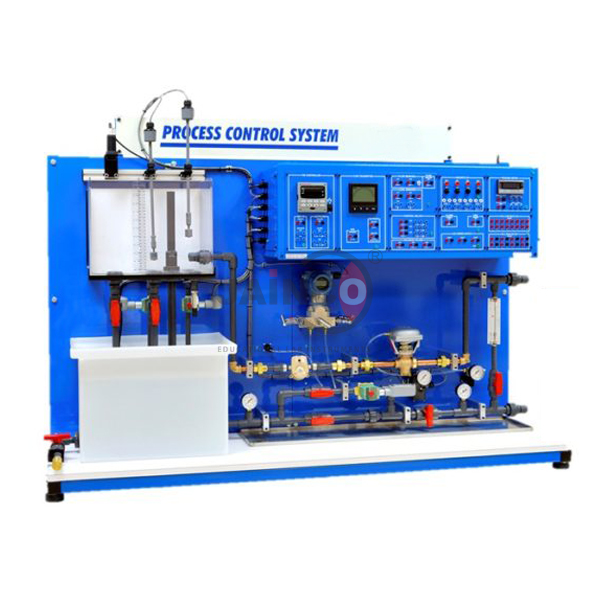

The Level and Flow Process Control Learning System (SKU JA-PCTE-9912) is a bench-top process control simulator for the two most common process loops, flow and liquid level. Components are plumbed in a closed loop to control the water flow between two tanks or the level in one tank, on a welded steel workstation with a process control network and control panel. This level and flow process control trainer is supplied by JaincoLab for instrumentation, chemical and mechanical engineering laboratories.
Specifications
The system includes a bench-top welded steel workstation, a process control network, a control panel with banana jacks for measuring signals and connecting devices, student theory and lab materials and a teacher's guide; tank volumes, pump and instrument models are confirmed on the quotation.
| Product | Level and Flow Process Control Learning System |
| SKU | JA-PCTE-9912 |
| Type | Level and flow process control training system |
| Workstation | Bench-top, welded steel |
| Process circuit | Closed loop - water flow between two tanks or liquid level in one tank |
| Control panel | Banana jack connections for signals and control configurations |
| Documentation | Student theory and lab materials, teacher's guide |
Applications of the level and flow process control trainer
Students connect the transmitters, controller and final control element through the banana jacks, then calibrate, tune and run flow and level loops in different control configurations.
- Liquid level control in a single tank
- Flow control between two tanks
- Calibrating and adjusting process instruments
- Wiring alternative control configurations at the panel
- Basic concepts for other process control systems
Scope of supply and ordering
This listing covers the level and flow process control learning system with the workstation, process network, control panel and learning materials listed. Electrical supply details and any computer or PLC connection are also confirmed on the quotation.
Single units for one workshop and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
Which processes does it control?
Water flow between two tanks and the liquid level in one tank.
How are signals measured?
All components connect to banana jacks on the control panel for measurement and wiring.
What skills does it teach?
Calibrating, adjusting, installing, operating and connecting process control systems.
