Demonstration Model for Experiments of MW Radio Circuits Manufacturer,Supplier and Exporter in India
Product Code : JA-DM-1118

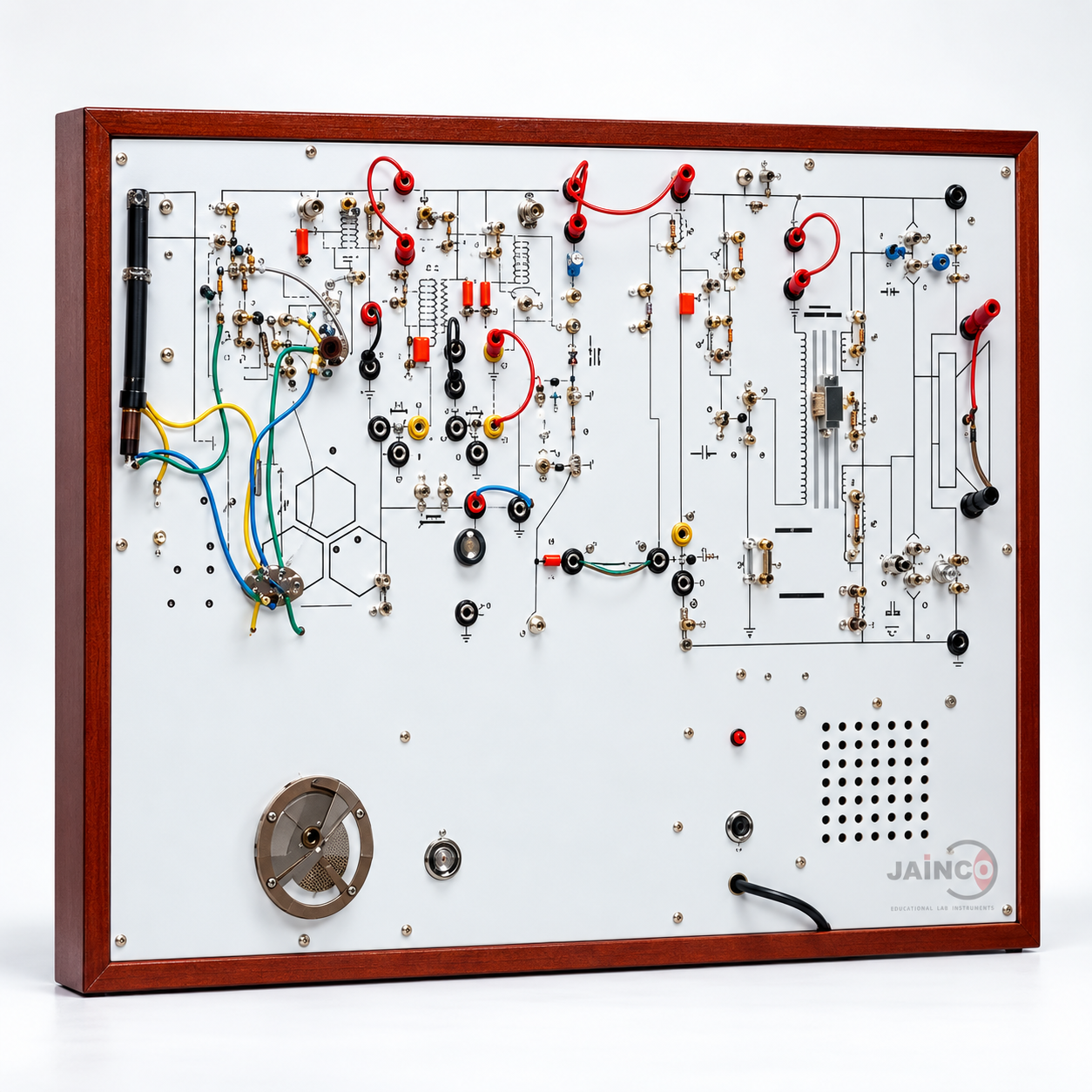

The Demonstration Model for Experiments of MW Radio Circuits (SKU JA-DM-1118) is used to study the working and the various faults of an MW transistor receiver, together with its signal, noise and output. The circuit is drawn on a screen-printed phenolic board and divided into its power supply, AGC, IF, oscillator, antenna and output sections. Components are soldered along the printed circuit, with the important points on terminals; a 6 V DC supply and a 4 inch, 8 ohm speaker are provided.
Specifications
The listing gives these details:
| Product | Demonstration Model for Experiments of MW Radio Circuits |
| SKU | JA-DM-1118 |
| Board | Phenolic sheet, screen-printed with the circuit |
| Sections | Power supply, AGC, IF, oscillator, antenna and output |
| Construction | Components soldered along the circuit, important points on terminals |
| Power supply | 6 V DC, provided |
| Speaker | 4 in, 8 ohm |
Scope of supply and ordering
Supplied with its 6 V DC supply and speaker.
Frequently asked questions
Which receiver sections are shown on the board?
Power supply, AGC, IF, oscillator, antenna and output.
What power and speaker does it use?
A 6 V DC supply and a 4 inch, 8 ohm speaker, both provided.
