Hydrodynamics of Trickle Bed Reactor Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-CR-9157

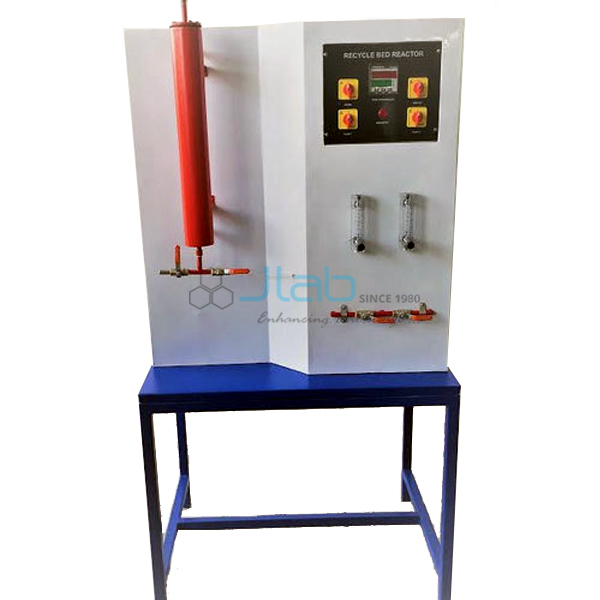

The Hydrodynamics of Trickle Bed Reactor Apparatus (SKU JA-CR-9157) is a set-up for measuring pressure drop, liquid hold-up and flow regime in a trickle bed, where liquid trickles down over packing with co-current gas. Water pumped from a 60 litre tank is sprayed onto an 80 mm x 600 mm borosilicate glass packed bed, and air enters at the top through a sparger, with solenoid valves for instant start and stop of both flows. It is supplied by JaincoLab for chemical reaction engineering laboratories.
Specifications
The apparatus has a 60 litre stainless steel feed tank, a 1/4 HP centrifugal pump, two pressure regulators (0-2 and 0-10 kg/cm²), a Bourdon gauge, a stainless steel mixing chamber, an 80 mm x 600 mm glass packed bed, rotameters for water and air, two solenoid valves and manometers.
| Product | Hydrodynamics of Trickle Bed Reactor Apparatus |
| SKU | JA-CR-9157 |
| Packed bed | Borosilicate glass, 80 mm diameter, 600 mm high, changeable |
| Packings | Glass beads 3 mm; Raschig rings 8-10 mm |
| Liquid feed | Stainless steel tank, 60 litres; centrifugal pump 1/4 HP; spray nozzle distributor |
| Gas feed | Regulated air vessel and sparger; pressure regulators 0-2 and 0-10 kg/cm²; Bourdon gauge |
| Flow measurement | Rotameter for water, rotameter for air |
| Valves | 2 solenoid valves (liquid and air inlets); gunmetal/brass control valves |
| Other | Stainless steel mixing chamber and liquid catch pot; manometers; SS and PVC piping, 1/2 inch |
| Utilities | Water supply and drain; single phase, 0.5 kW; compressed air at 4 bar |
Experiments with the trickle bed reactor apparatus
Students set liquid and gas flows, read the bed pressure drop on the manometers and shut both feeds together with the solenoid valves to measure the liquid held up in the packing.
- Pressure drop across a trickle bed at different flows
- Liquid hold-up measurement by drainage
- Identifying trickle, pulse and other flow regimes
- Comparing glass bead and Raschig ring packings
- Chemical reaction engineering practicals
Scope of supply and ordering
This listing covers the trickle bed apparatus with glass column and packings, feed tank and pump, air-line fittings, rotameters, solenoid valves, manometers and structure. Accessories, spares and quantities are confirmed on the quotation. The compressor is confirmed on the quotation.
Minimum order quantity, packing and lead time for the Hydrodynamics of Trickle Bed Reactor Apparatus are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What does the apparatus measure?
Pressure drop, liquid hold-up and flow regime in a trickle bed.
What are the bed dimensions?
A borosilicate glass column of 80 mm diameter and 600 mm height, which can be changed and refilled.
Which packings are provided?
3 mm glass beads and 8-10 mm Raschig rings.
Related products
- RTD Packed Bed Reactor Apparatus
- Absorption in Packed Column
- Plug Flow Reactor (Coiled Tube Type)
- Wetted Wall Absorption Pilot Plant
Browse the JaincoLab training workshop labs range for other chemical engineering, process and training units.
Request a quote
For a quotation on the Hydrodynamics of Trickle Bed Reactor Apparatus, share the quantity, any size or specification preference and the destination via the JaincoLab contact page; the sales team also answers at [email protected]. Tender and project enquiries can be sent through the tenders page.
