Plug Flow Reactor (Coiled Tube Type) Manufacturer,Supplier and Exporter in India
Product Code : JA-CR-9134

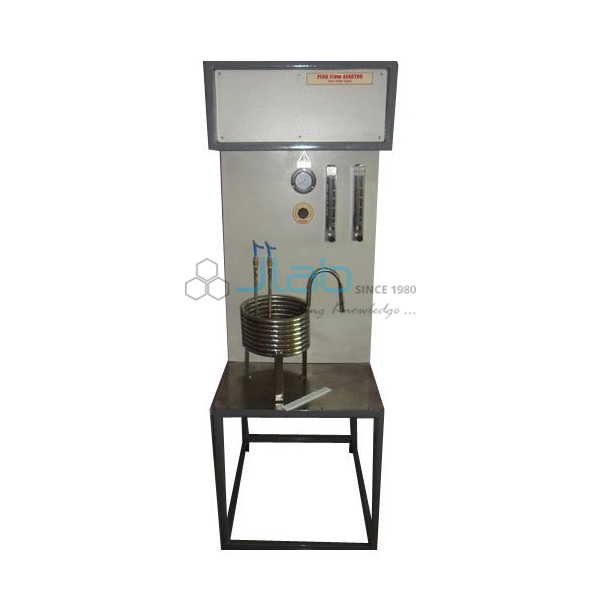

The Plug Flow Reactor (Coiled Tube Type) (SKU JA-CR-9134) is a helical coil tube reactor for studying a non-catalytic, homogeneous reaction under isothermal conditions. Two reactants are pumped by a magnetic drive pump from two feed tanks through rotameters with needle valves into the lower end of the coil, and samples are taken where the mixture leaves the top. The coil geometry creates secondary flow, so a higher rate constant is expected than in a straight tube. It is supplied by JaincoLab for reaction engineering laboratories.
Specifications
The reactor is a helical coil tube fed from two feed tanks by a magnetic drive pump, with rotameters and needle valves for each reactant and a sampling point at the top outlet; coil length, diameter and tank capacities are confirmed on the quotation.
| Product | Plug Flow Reactor (Coiled Tube Type) |
| SKU | JA-CR-9134 |
| Reactor | Helical coil tube (plug flow) |
| Feed | 2 feed tanks; magnetic drive pump |
| Flow measurement | Rotameters with needle valves |
| Flow path | Enters at the lower end, leaves at the top of the coil |
| Sampling | Top outlet |
Experiments with the coiled tube plug flow reactor
Students run the reaction at different flow rates, sample the outlet at steady state and calculate conversion and the rate constant for the coiled plug flow reactor.
- Non-catalytic homogeneous reaction in a plug flow reactor
- Determining the reaction rate constant
- Effect of residence time on conversion
- Comparing coiled PFR with CSTR performance
- Chemical reaction engineering practicals
Scope of supply and ordering
This listing covers the coiled tube plug flow reactor set-up with coil, feed tanks, pump and rotameters. Accessories, spares and quantities are confirmed on the quotation. Analysis glassware, instruments and chemicals are not included.
Packing, lead time and any minimum order for the Plug Flow Reactor (Coiled Tube Type) are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
What type of reactor is it?
A helical coil tube plug flow reactor.
Why use a coiled tube?
Frequent change of flow direction and secondary flow add turbulence, so a higher rate constant is expected than in a straight tube.
How are the reactants fed?
By a magnetic drive pump from two feed tanks, with rotameters and needle valves.
