LCR Impedance Circuit Manufacturer,Supplier and Exporter in India
Product Code : JA-VOVLACOS-1110
Jaincolab manufactures and exports the LCR Impedance Circuit apparatus (Product Code JA-MSR-1110), a physics instrument built to calculate the AC power factor of an LCR circuit when its inductor, capacitor and resistor are connected in series on an AC voltage. As a Scientific Instrument manufacturer and exporter based in Ambala, Haryana, Jaincolab supplies this apparatus to physics and electrical laboratories in schools, colleges and universities across India and internationally.

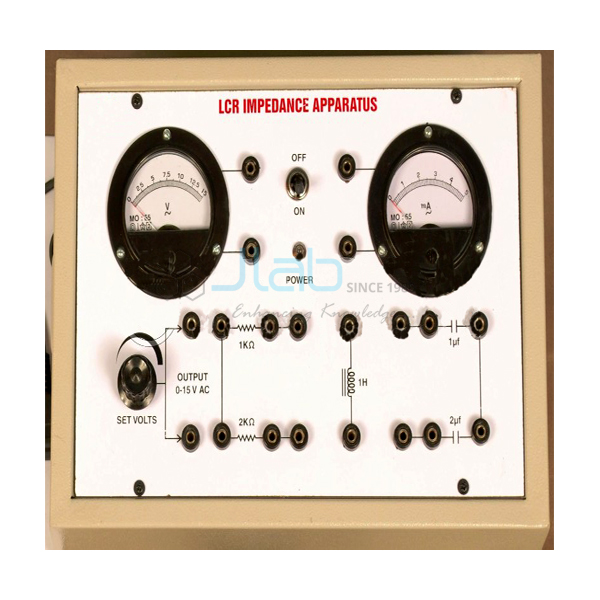

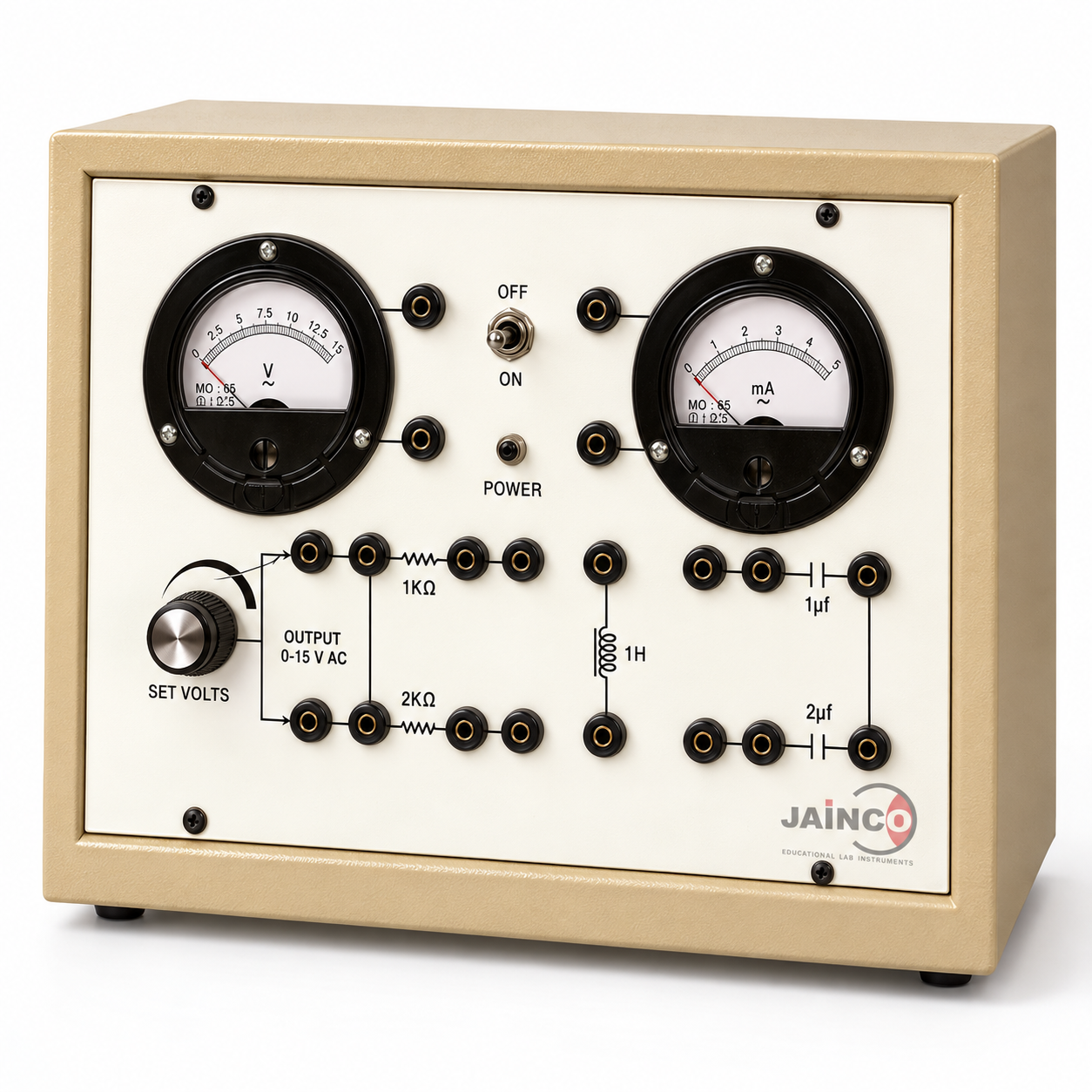

The instrument comprises an AC power supply of 100V, selectable using a band switch, and two AC moving-coil meters to measure voltage and current. One resistance, one capacitor and one inductance are connected in the circuit, with all connections brought out on terminals so students can wire the LCR series circuit and calculate its power factor from the measured voltage and current. The apparatus measures 10"x8"x4".
Specifications
| Parameter | Specification |
|---|---|
| Product Code | JA-MSR-1110 |
| Power Supply | AC power supply, 100V, selectable via band switch |
| Meters | Two AC moving-coil meters for voltage & current measurement |
| Circuit Elements | One resistance, one capacitor and one inductance connected in series |
| Terminals | All connections brought out on terminals |
| Overall Dimensions | 10" x 8" x 4" |
Key Features
- Calculates the AC power factor of a series LCR circuit
- AC power supply of 100V with band-switch selection
- Two AC moving-coil meters for direct voltage and current measurement
- Resistance, capacitor and inductance connected in the panel circuit
- Terminal connections for flexible wiring and measurement
- Bench-top design measuring 10" x 8" x 4"
Why Choose Jaincolab
Jaincolab (Jain Scientific Suppliers, Ambala, Haryana) manufactures and exports electrical and electronics measurement lab equipment for school, college and university laboratories across India and internationally. Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Explore related Scientific Instrument equipment from Jaincolab:
- Conversion of Galvanometer Into a Voltmeter and Current Meter
- Resistances in Series and Parallel Apparatus
- Portable Wheatstone Bridge
- Scientific Instrument category
Applications
| Application Area | Typical Use |
|---|---|
| Physics/Electrical Laboratory | Calculating the AC power factor of a series LCR circuit |
| AC Circuit Theory Teaching | Demonstrating impedance, phase angle and power factor in LCR series circuits |
| Educational Institutions | Undergraduate physics and electrical practicals in schools, colleges and universities |
Frequently Asked Questions
Q: What does this apparatus calculate?
A: It calculates the AC power factor of an LCR circuit when its resistance, capacitor and inductor are connected in series on AC voltage.
Q: What does the instrument include?
A: It includes an AC power supply of 100V with band-switch selection, two AC moving-coil meters, and one resistance, one capacitor and one inductance connected on the panel with terminals.
Q: How is the power factor determined using this apparatus?
A: By measuring the AC voltage and current with the moving-coil meters and using them, along with the known circuit values, to calculate the power factor of the series LCR circuit.
Q: What are the overall dimensions of the unit?
A: The unit measures 10 in x 8 in x 4 in.
Q: Is Jaincolab a certified manufacturer?
A: Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Request a Quote
For pricing, lead times and technical clarification on the LCR Impedance Circuit, contact Jaincolab directly. Request a Quote and our team will confirm specifications and availability for your institution.
