H Parameters of PNP Transistor in Common Emitter Mode Manufacturer,Supplier and Exporter in India
Product Code : JA-SCD-1078

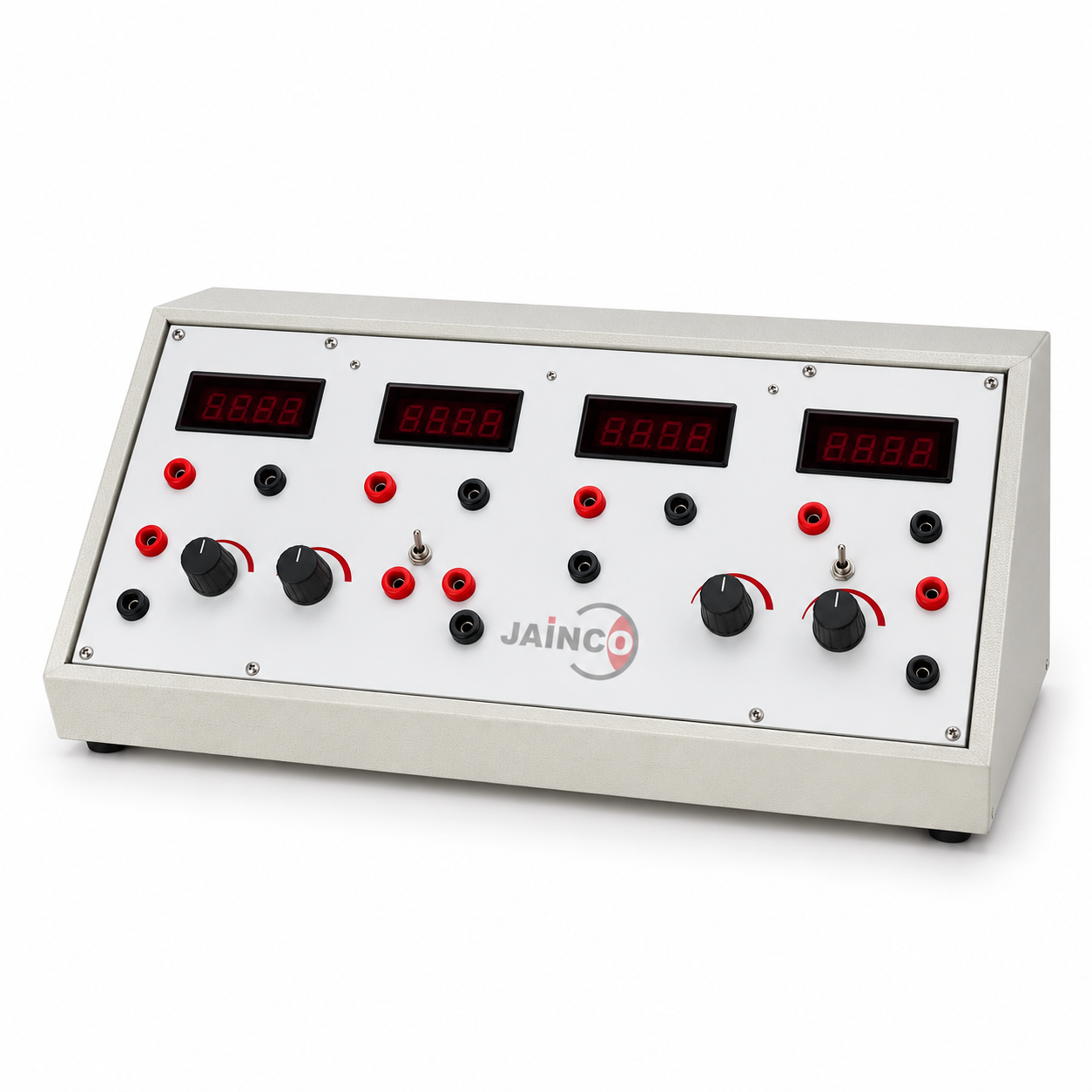

The H Parameters of PNP Transistor in Common Emitter Mode apparatus (SKU JA-SCD-1078) is used to find the h-parameters of a transistor: current gain, input impedance and output impedance. A PNP transistor is mounted on the panel with a built-in oscillator. Two DC supplies, 0-10 V at 500 mA or 50 mA and 0-1 V at 30 mA, set the bias, and four meters give the readings. The panel measures 15 x 18 x 4 inches.
Specifications
The listing gives these details:
| Product | H Parameters of PNP Transistor in Common Emitter Mode |
| SKU | JA-SCD-1078 |
| Transistor | One PNP, mounted, common emitter mode |
| DC supply 1 | 0-10 V, 500 mA/50 mA |
| DC supply 2 | 0-1 V, 30 mA |
| Meters | Four |
| Signal source | Built-in oscillator |
| Size | 15 x 18 x 4 in |
Scope of supply and ordering
One apparatus per order line.
Frequently asked questions
Which h-parameters can be calculated?
Current gain, input impedance and output impedance of the PNP transistor in common emitter mode.
Is a signal source built in?
Yes, an oscillator is built in, with two DC supplies and four meters.
