Methods of Flow Measurement Manufacturer,Supplier and Exporter in India

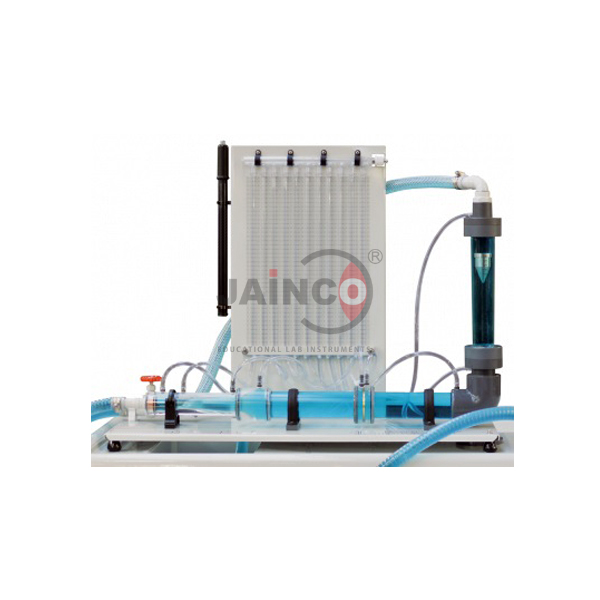

Methods of Flow Measurement

Product Code : JA-FMAHLE-9991
Jainco Lab is a leading Methods of Flow Measurement Manufacturer,and suppliers in India, Methods of Flow Measurement Manufacturer,and suppliers in South Africa.Methods of Flow Measurement Suppliers in Mozambique,Methods of Flow Measurement in Supplier Kenya, Southren African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia, Kenya, Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

Methods of Flow Measurement
Specification:-
Different methods of flow rate measurement.
6 tube manometers to determine the pressure distribution in Venturi nozzle, orifice plate flow meter and measuring nozzle.
Measuring instruments: orifice plate flow meter/measuring nozzle, Venturi nozzle and rotameter.
Measurement of the total pressure with Pitot tube.

Technical Data:-
Venturi nozzle: A= 84...338mm²
Angle at the inlet: 10, 5°
Angle at the outlet: 4°
Rotameter: max. 1700L/h
6 tube manometers: 390mm WC.
Orifice plate flow meter: diameter= 14mm
Measuring nozzle: diameter= 18, 5mm
