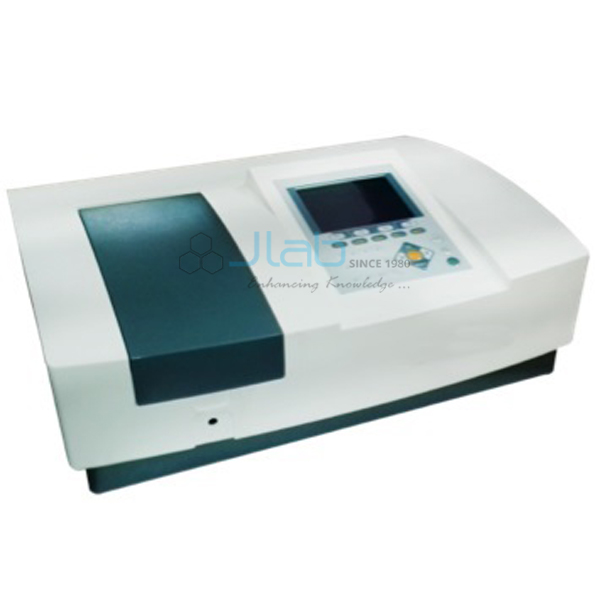

Microprocessor UV-VIS Double beam Spectrophotometer (Two cell Holder) Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : JA-S-6439
The Microprocessor UV-VIS Double beam Spectrophotometer (Two cell Holder), SKU JA-S-6439, measures absorbance, transmittance and concentration from 190 to 1100 nm with a 1 nm spectral bandwidth. This double beam UV-VIS spectrophotometer uses a 1200 lines/mm grating, deuterium and tungsten lamps and a silicon photodiode detector, scans at fast, medium or slow speed and holds two cells. It is supplied by JaincoLab for research, pharmaceutical and college chemistry laboratories.
Specifications
The instrument covers 190-1100 nm at 1 nm bandwidth with ±0.3 nm accuracy over the full range, 0.1 nm repeatability and resolution, and a photometric range of -3 to 3 A.
| Product | Microprocessor UV-VIS Double beam Spectrophotometer (Two cell Holder) |
| SKU | JA-S-6439 |
| Optical system | Double beam, grating 1200 lines/mm |
| Wavelength range | 190-1100 nm |
| Spectral bandwidth | 1 nm |
| Wavelength accuracy | ±0.3 nm (full range) |
| Wavelength repeatability | 0.1 nm |
| Wavelength resolution | 0.1 nm |
| Photometric accuracy | ±0.3%T (0-100%T) |
| Photometric repeatability | 0.001 Abs (0-0.5 Abs) |
| Photometric range | -3 to 3 A |
| Photometric modes | A, T, C |
| Stray light | 0.02%T or less |
| Baseline flatness | ±0.001 A |
| Scanning speed | Fast, medium, slow |
| Wavelength setting | Automatic |
| Keyboard | Membrane keypad |
| Light source | Deuterium and tungsten lamps |
| Detector | Silicon photodiode |
| Interface | USB port; parallel printer port |
| Power | AC 220 V, 50 Hz or AC 110 V |
| Dimensions | 590 x 460 x 220 mm |
| Weight | 25 kg |
| Cell holder | 2 cells |
Applications of the double beam UV-VIS spectrophotometer
A 1 nm bandwidth resolves close absorption bands, and the reference beam keeps long scans stable.
- Spectral scans and quantitative analysis in research laboratories
- Drug assay and impurity work in pharmaceutical laboratories
- M.Sc and B.Pharm instrumental analysis practicals
- Biochemical and environmental analysis
Scope of supply and ordering
The listing covers the double beam spectrophotometer with deuterium and tungsten lamps, two cell holder, USB port and parallel printer port. Cuvettes, printer, software and spare lamps are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of instruments and the delivery destination.
Frequently asked questions
What is the spectral bandwidth?
1 nm, over a wavelength range of 190 to 1100 nm.
How accurate is the wavelength setting?
±0.3 nm over the full range, with 0.1 nm repeatability.
How many cells does it hold?
The cell holder takes two cells.
Related products
- Microprocessor UV - VIS Spectrophotometer Double Beam (Two Cell Holder)
- Microprocessor UV - VIS Spectrophotometer Double Beam
- Double Beam Spectrophotometer
- Advanced Microprocessor UV-VIS Spectrophotometer Single Beam (Scanning)
This model is listed in the JaincoLab spectrophotometer range.
Request a quote
To order the Microprocessor UV-VIS Double beam Spectrophotometer (Two cell Holder), send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-S-6439. Institutions and contractors buying under a tender can also reach us via the tenders page.
