Reciprocating Pump Test Rig Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8984

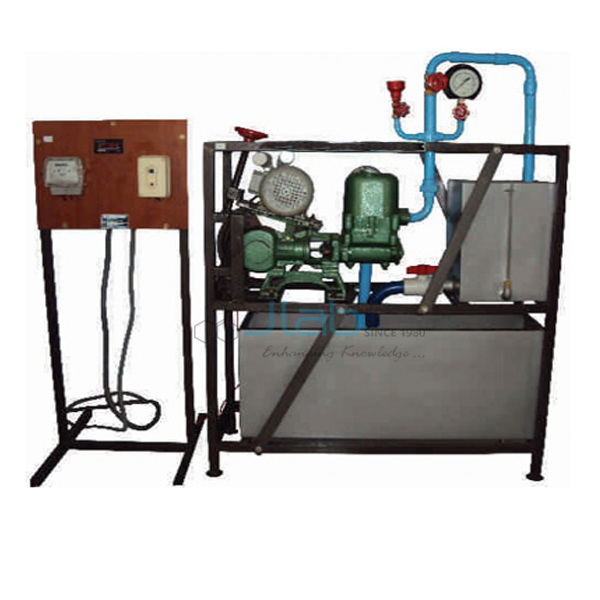

The Reciprocating Pump Test Rig (SKU JA-HLE-8984) is a reciprocating pump test rig for studying positive displacement pumping. A crank and connecting rod, driven by a 1 HP, 1400 rpm single phase motor, give the piston its reciprocating motion in a closed cylinder. The pump is double acting, 25 x 20 mm, with an air vessel, and delivers about 20 litres per minute at 20 m total head. It is manufactured by JaincoLab for hydraulic machines labs.
Specifications
The rig uses a double acting 25 x 20 mm reciprocating pump with air vessel, delivering about 20 LPM at 20 m total head, driven by a 1 HP, 1400 rpm single phase 200/220 V motor through crank and connecting rod.
| Product | Reciprocating Pump Test Rig |
| SKU | JA-HLE-8984 |
| Pump | Double acting reciprocating, 25 x 20 mm, with air vessel |
| Output | About 20 LPM at 20 m total head |
| Drive | Crank and connecting rod |
| Motor | 1 HP, 1400 rpm, single phase, 200/220 V AC |
| Measuring tank, gauges and sump | Confirmed on the quotation |
Applications of the reciprocating pump test rig
Students measure discharge, head and input power at different delivery pressures and calculate slip, volumetric efficiency and overall efficiency of a positive displacement pump.
- Discharge against delivery head
- Slip and coefficient of discharge
- Volumetric and overall efficiency
- Function of the air vessel
- Hydraulic machines practicals in B.Tech, diploma and AMIE courses
Scope of supply and ordering
The listing covers the reciprocating pump test rig with motor and drive as described. The measuring tank, gauges and sump arrangement are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing for the Reciprocating Pump Test Rig are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
What type of pump is fitted?
A double acting reciprocating pump of size 25 x 20 mm with an air vessel.
What is its output?
About 20 litres per minute at 20 m total head.
What motor drives it?
A 1 HP, 1400 rpm, single phase 200/220 V AC motor.
Related products
- Pelt on Wheel Turbine Test Rig
- Co-Efficient of Discharge Apparatus
- Notch Apparatus
- Closed Circuit Jet on Vane Apparatus
Browse the full mechanical engineering lab equipment range from JaincoLab, covering strength of materials, metrology, machine dynamics and workshop equipment.
Request a quote
Request the price and specification sheet for the Reciprocating Pump Test Rig through the JaincoLab contact page; mention SKU JA-HLE-8984, the quantity and where it is to be delivered. For tender or project supply, see our tenders page.
