Notch Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8954

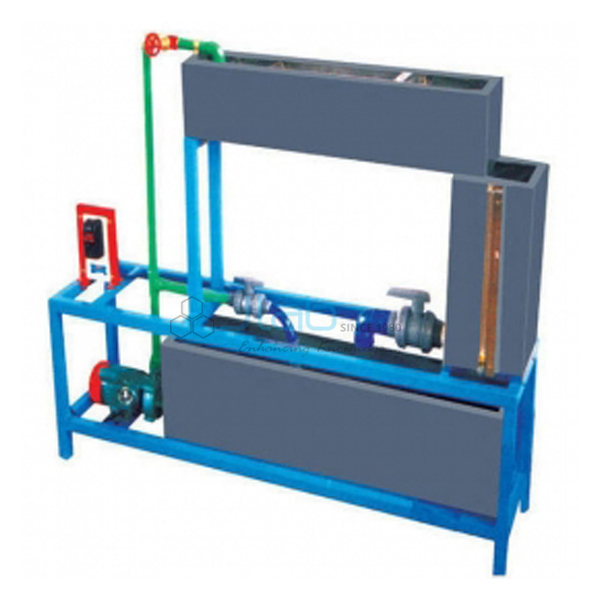

The Notch Apparatus (SKU JA-HLE-8954) is a notch apparatus for calibrating notches and finding their coefficient of discharge. A notch tank of suitable size takes replaceable brass notches, trapezoidal and rectangular (100 mm wide), and welded mesh baffles holding 3/4 or 1 inch crushed stone steady the flow. A 0.5 HP single phase pump with control valve supplies water from the sump. It is manufactured by JaincoLab for fluid mechanics labs in engineering colleges and polytechnics.
Specifications
The apparatus has a notch tank with replaceable brass trapezoidal and 100 mm rectangular notches, mesh baffles with crushed stone, and a 0.5 HP single phase pump with control valve; it needs 200/220 V and water to fill the sump.
| Product | Notch Apparatus |
| SKU | JA-HLE-8954 |
| Notch tank | Suitable size, with arrangement for replaceable notches |
| Notches (brass) | Trapezoidal; rectangular 100 mm width |
| Flow steadying | Welded mesh baffles holding 3/4 in / 1 in crushed stones |
| Pump | 0.5 HP single phase, with control valve |
| Services required | Single phase 200/220 V; water to fill the sump tank |
| Hook gauge and measuring tank | Confirmed on the quotation |
Applications of the notch apparatus
Students measure the head over each notch and the actual discharge, then find the coefficient of discharge and compare rectangular and trapezoidal notches for open channel flow measurement.
- Calibration of a rectangular notch
- Calibration of a trapezoidal notch
- Coefficient of discharge against head
- Open channel flow measurement principles
- Fluid mechanics and hydraulics practicals in B.Tech, diploma and AMIE courses
Scope of supply and ordering
The listing covers the notch tank with brass trapezoidal and rectangular notches, baffles, pump and control valve. Additional notch shapes, hook gauge and measuring tank are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, lead time and minimum order quantity depend on the quantity and delivery destination and are confirmed on each quotation. Institutional, bulk and tender orders are supplied, including export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which notches are supplied?
Brass trapezoidal and rectangular (100 mm width) notches.
How is the flow steadied?
By welded mesh baffles holding 3/4 or 1 inch crushed stones.
What pump is fitted?
A 0.5 HP single phase pump with a control valve.
