Tilting Flume Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8985

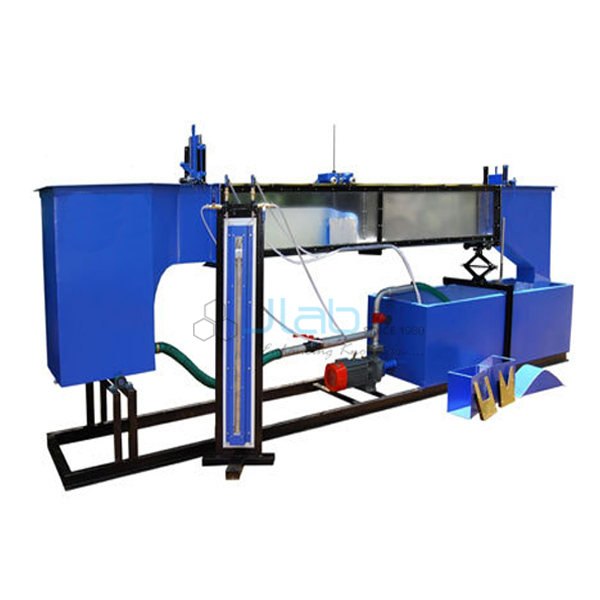

The Tilting Flume Apparatus (SKU JA-HLE-8985) is a tilting flume for open channel flow studies, with a 76 mm wide, 250 mm high channel whose clear acrylic sides give full visibility of the working section. A jacking system sets the bed slope between -1% and +3%. Water recirculates from a 250 litre stainless steel sump through a shunt orifice flowmeter reading 0.5 to 2.5 litres per second. It is supplied by JaincoLab for hydraulics and fluid mechanics labs.
Specifications
The flume has a 76 x 250 mm acrylic-sided channel, slope adjustable from -1% to +3%, a 250 L S.S. sump, 40 L GRP volumetric tank, 0.55 kW 2800 rpm pump motor, 0.5-2.5 L/s flowmeter and 0.1 mm level gauges; overall 5.4 x 0.62 x 1.46 m.
| Product | Tilting Flume Apparatus |
| SKU | JA-HLE-8985 |
| Channel | 76 mm wide, 250 mm high, clear acrylic sides |
| Bed slope | Adjustable -1% to +3% by jacking system |
| Sump tank | 250 litres, S.S. |
| Volumetric tank | 40 litres, GRP |
| Motor | 0.55 kW split capacitor start, built-in overload protection, 2800 rpm, Class B insulation, continuous duty |
| Flowmeter | Shunt orifice type, 0.5 to 2.5 litres/sec |
| Vernier level | 1 x 150 mm, 0.1 mm resolution |
| Gauges | 2 x 300 mm, 0.1 mm resolution |
| Overall dimensions | 5.4 m (L) x 0.62 m (W) x 1.46 m (H) |
Applications of the tilting flume for open channel flow
The flume lets students set a channel slope and flow, then observe and measure open channel phenomena such as hydraulic jumps, flow over weirs and flow under gates through its transparent sides.
- Uniform flow and Manning or Chezy coefficients
- Hydraulic jump and specific energy
- Flow over weirs and under sluice gates
- Effect of bed slope on flow depth
- Open channel hydraulics practicals in civil and mechanical engineering courses
Scope of supply and ordering
The listing covers the tilting flume with sump, volumetric tank, pump, flowmeter and level gauges as listed. Weirs, gates and other flow models are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
There is no fixed MOQ on this listing: minimum quantity, lead time and packing are stated on the quotation for your order size and destination. Bulk college, polytechnic and tender orders are supplied.
Frequently asked questions
What are the channel dimensions?
76 mm wide and 250 mm high, with clear acrylic sides.
How much can the slope be adjusted?
Between -1% and +3% using the jacking system.
What flow range does it cover?
0.5 to 2.5 litres per second on the shunt orifice flowmeter.
How much floor space does it need?
Overall 5.4 m long, 0.62 m wide and 1.46 m high; send SKU JA-HLE-8985 and the delivery destination for a quotation.
Related products
See the complete mechanical engineering laboratory range for engineering colleges, polytechnics and ITIs.
Request a quote
To order the Tilting Flume Apparatus, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-HLE-8985. Tender and project enquiries can be sent through the tenders page.
