Pelt on Wheel Turbine Test Rig Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8977

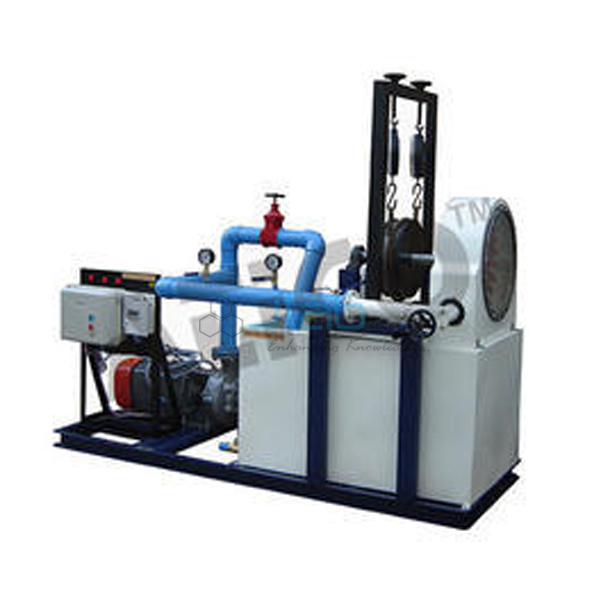

The Pelt on Wheel Turbine Test Rig (SKU JA-HLE-8977) is a Pelton wheel turbine test rig for the hydraulic machines lab. The unit is a small Pelton wheel, a high head turbine working at minimum discharge, connected to a rope brake dynamometer on a 300 mm cast iron drum. It is rated 5 HP at 1000 rpm with 750 litres per minute discharge at 50 m supply head, and has gun metal buckets. It is manufactured by JaincoLab for engineering colleges and polytechnics.
Specifications
The test rig is rated 5 HP at 1000 rpm, takes 750 litres/minute at 50 m supply head, has gun metal buckets, cast iron construction and rope brake loading on a 300 mm diameter drum.
| Product | Pelt on Wheel Turbine Test Rig |
| SKU | JA-HLE-8977 |
| Turbine | Pelton wheel, high head at minimum discharge |
| Capacity | 5 HP |
| Rated speed | 1000 rpm |
| Discharge capacity | 750 litres/minute |
| Supply head | 50 m |
| Buckets | Gun metal |
| Loading | Rope brake dynamometer |
| Material | Cast iron |
| Brake drum size | 300 mm diameter |
Applications of the Pelton wheel turbine test rig
Students run the turbine at different loads on the rope brake and measure speed, head and discharge, then plot efficiency and output curves for an impulse turbine.
- Performance test of an impulse turbine
- Brake power by rope brake dynamometer
- Efficiency against speed and load
- Constant head and constant speed characteristics
- Hydraulic machines practicals in B.Tech, diploma and AMIE courses
Scope of supply and ordering
The listing covers the Pelton wheel with rope brake dynamometer as described. The supply pump, measuring tank or flow meter and gauges are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
There is no fixed MOQ on this listing: minimum quantity, lead time and packing are stated on the quotation for your order size and destination. Bulk college, polytechnic and tender orders are supplied.
Frequently asked questions
What is the turbine rating?
5 HP at a rated speed of 1000 rpm.
What head and discharge does it need?
A supply head of 50 m and a discharge of 750 litres per minute.
How is the turbine loaded?
By a rope brake dynamometer on a 300 mm diameter drum.
