Hydraulic Ram Test Rig Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8980

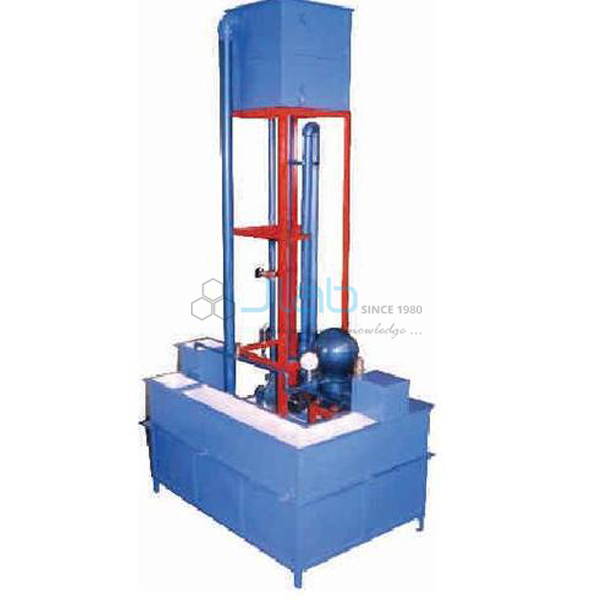

The Hydraulic Ram Test Rig (SKU JA-HLE-8980) is a hydraulic ram test rig for studying how a ram uses the water hammer effect of a large flow at low head to lift a smaller flow to a greater height. The ram works against a delivery head of up to 20 m from a 2.5 m supply head, discharging about 250 litres per hour at 10 m head. A 0.5 HP single phase pump fills the supply tank from the sump. It is manufactured by JaincoLab.
Specifications
The rig has a hydraulic ram working from 2.5 m supply head to up to 20 m delivery head (about 250 LPH at 10 m), a 50 mm x 6 m supply pipe, a 1/2 inch delivery pipe to a measuring tank and a 0.5 HP single phase supply pump.
| Product | Hydraulic Ram Test Rig |
| SKU | JA-HLE-8980 |
| Ram size | Confirmed on the quotation |
| Supply head | 2.5 m |
| Delivery head | Up to 20 m |
| Discharge | About 250 LPH at 10 m head |
| Supply pipe | 50 mm, 6 m long, supply tank to ram |
| Delivery pipe | 1/2 inch, ram to measuring tank |
| Pump | 0.5 HP single phase, sump to supply tank |
Applications of the hydraulic ram test rig
Students measure waste and delivered flows and the supply and delivery heads, then calculate the efficiency of the ram and see how pressure surges can pump water without a motor at the ram.
- Working principle of the hydraulic ram
- Efficiency of a hydraulic ram
- Effect of delivery head on discharge
- Water hammer in pipelines
- Hydraulic machines practicals in B.Tech, diploma and AMIE courses
Scope of supply and ordering
The listing covers the hydraulic ram with supply tank, supply and delivery pipes, measuring tank arrangement and supply pump as described.
Single units for one laboratory and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
What heads does the ram work between?
From a 2.5 m supply head against a delivery head of up to 20 m.
What discharge is listed?
About 250 litres per hour at 10 m head.
How is the supply tank filled?
By a 0.5 HP single phase pump from the sump.
