Centrifugal Pump Test Rig Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8983

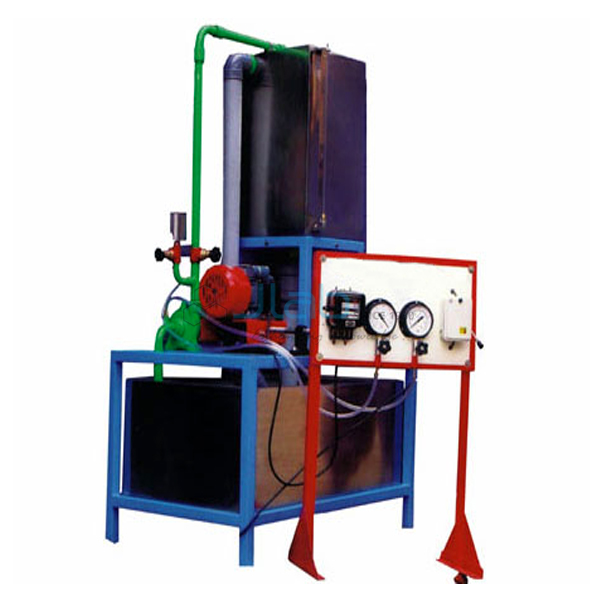

The Centrifugal Pump Test Rig (SKU JA-HLE-8983) is a centrifugal pump test rig for determining pump characteristics at different speeds. A 40 mm centrifugal pump discharges about 250 litres per minute, driven by a 3 HP, 2880 rpm three phase motor through a stepped pulley V-belt drive that gives three pump speeds. A starter and energy meter measure input power, and the piping has a pressure relief valve, gate valve and pressure gauge. It is manufactured by JaincoLab.
Specifications
The rig has a 40 mm centrifugal pump of about 250 LPM, a 3 HP 2880 rpm 400/440 V motor with three-speed stepped pulley V-belt drive, starter and energy meter, and a sump in M.S. powder coated, M.S./FRP or S.S.
| Product | Centrifugal Pump Test Rig |
| SKU | JA-HLE-8983 |
| Pump | Centrifugal, 40 mm, about 250 LPM |
| Total head | Listed as "15" (unit confirmed on the quotation) |
| Motor | 3 HP, 2880 rpm, three phase, 400/440 V AC |
| Speed variation | Stepped pulley V-belt drive, 3 speeds |
| Electrical panel | Starter and energy meter for input power |
| Sump tank | M.S. powder coated, M.S. with FRP lining or S.S. |
| Piping | Pipes, pressure relief valve, gate valve, fittings, pressure gauge |
Applications of the centrifugal pump test rig
Students run the pump at three speeds, vary the delivery valve and record head, discharge and power, then plot operating curves and check the affinity laws.
- Head, discharge and efficiency curves
- Effect of speed using the stepped pulley
- Affinity laws for centrifugal pumps
- Input power by energy meter
- Hydraulic machines practicals in B.Tech, diploma and AMIE courses
Scope of supply and ordering
The listing covers the centrifugal pump test rig with motor, stepped pulley drive, panel, sump and piping. The sump material is chosen on the order. Accessories, spares and quantities are confirmed on the quotation.
Each quotation confirms the MOQ, lead time and packing for this item against the quantity ordered and the delivery destination. Orders for a single laboratory as well as multi-laboratory sets for new institutions are supplied.
Frequently asked questions
How many pump speeds are available?
Three, using a stepped pulley V-belt drive.
What pump size is fitted?
A 40 mm centrifugal pump discharging about 250 litres per minute.
What supply is needed?
A three phase 400/440 V AC supply for the 3 HP motor.
Related products
See the complete mechanical engineering laboratory range for engineering colleges, polytechnics and ITIs.
Request a quote
For a quotation on the Centrifugal Pump Test Rig (SKU JA-HLE-8983), use the JaincoLab enquiry page with the number of units required and the delivery destination. Institutions and contractors buying under a tender can also reach us via the tenders page.
