Wind Tunnel Test Rig Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8986

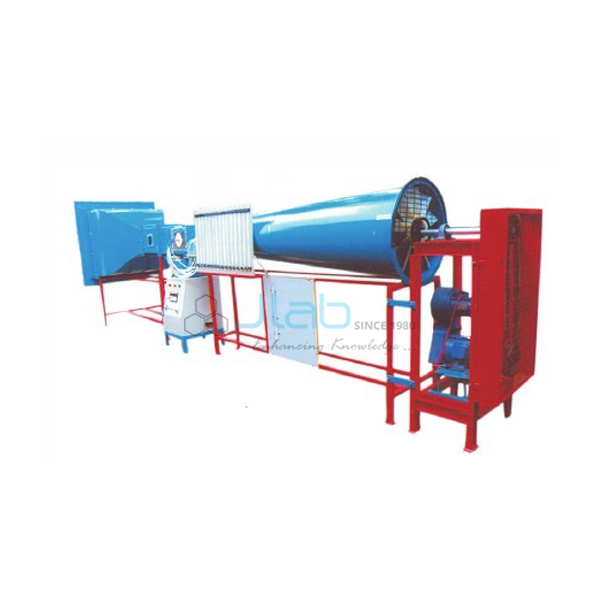

The Wind Tunnel Test Rig (SKU JA-HLE-8986) is an open type wind tunnel for aerodynamics experiments in the fluid mechanics lab. It has a 300 x 300 x 1000 mm test section with wind speed up to 20 m/s, produced by a five-blade cast aluminium fan on a 3 HP, 2880 rpm AC induction motor with a speed controller. The tunnel is about 4.2 m long with a 9:1 contraction ratio. It is manufactured by JaincoLab for engineering colleges and polytechnics.
Specifications
The open type tunnel has a 300 x 300 x 1000 mm test section, up to 20 m/s wind speed, a 5-blade cast aluminium fan on a 3 HP 2880 rpm 440 V motor with controller, about 4.2 m tunnel length (9.5 m air length) and a 9:1 contraction.
| Product | Wind Tunnel Test Rig |
| SKU | JA-HLE-8986 |
| Type | Open type wind tunnel |
| Test section | 300 x 300 x 1000 mm |
| Wind speed in test section | 20 m/s |
| Blower fan | 5-blade cast aluminium |
| Motor | 3 HP AC induction, 2880 rpm, 440 V / 15 A |
| Controller | Motor controller (make confirmed on the quotation) |
| Tunnel length | About 4.2 m; air length 9.5 m |
| Contraction ratio | 9:1 |
Applications of the open type wind tunnel
Students mount models in the test section and measure pressure distribution, lift and drag at controlled wind speeds, linking fluid mechanics theory to aerofoils, vehicles and buildings.
- Pressure distribution over an aerofoil
- Lift and drag measurements on models
- Flow around cylinders and bluff bodies
- Velocity profile measurement in the test section
- Aerodynamics and fluid mechanics practicals in B.Tech and diploma courses
Scope of supply and ordering
The listing covers the open type wind tunnel with fan, motor and controller as described. Models, pitot-static tubes, manometers and force balances are confirmed on the quotation.
Frequently asked questions
What size is the test section?
300 x 300 x 1000 mm.
What wind speed can it reach?
20 m/s in the test section.
What drives the fan?
A 3 HP, 2880 rpm, 440 V AC induction motor with a speed controller.
Related products
- Tilting Flume Apparatus
- Bernoulli Theorem Apparatus
- Venturi meter and Orifice meter Apparatus
- Hydraulic Flume
Browse the full mechanical engineering lab equipment range from JaincoLab, covering strength of materials, metrology, machine dynamics and workshop equipment.
Request a quote
For a quotation on the Wind Tunnel Test Rig (SKU JA-HLE-8986), use the JaincoLab enquiry page with the number of units required and the delivery destination. Buying under a laboratory tender? Use our tenders page.
