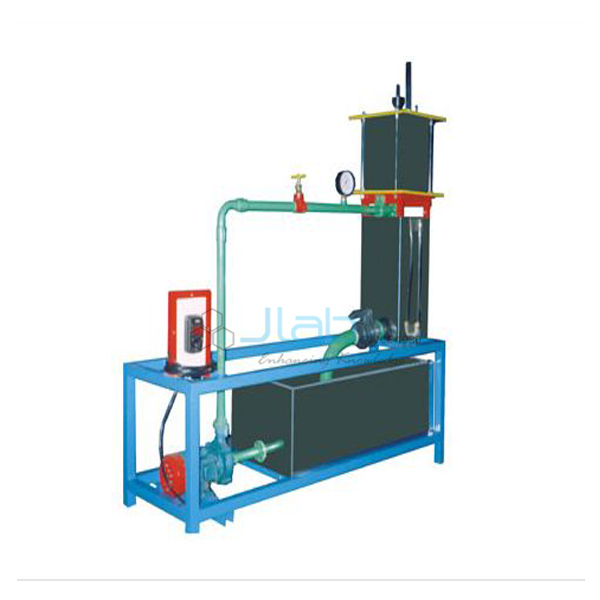

Closed Circuit Jet on Vane Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8989
The Closed Circuit Jet on Vane Apparatus (SKU JA-HLE-8989) is a jet impact apparatus for measuring the force a water jet exerts on vanes of different shapes and comparing it with the momentum theory. In a closed circuit design the water is recirculated from a sump. The product data on this listing describes a different machine, so no specification values are given here; the vane set, nozzle sizes, pump and measuring arrangement are confirmed on the quotation. It is manufactured by JaincoLab.
Specifications
No reliable specification values are held for this listing; nozzle diameters, vane shapes, pump rating, flow measurement and dimensions are all confirmed on the quotation.
| Product | Closed Circuit Jet on Vane Apparatus |
| SKU | JA-HLE-8989 |
| Type | Jet on vane apparatus, closed circuit |
| Vanes and nozzles | Confirmed on the quotation |
| Pump and power supply | Confirmed on the quotation |
| Flow measurement and dimensions | Confirmed on the quotation |
Applications of the jet impact apparatus
The apparatus is used to verify the momentum equation: students measure the force of a jet on flat, inclined and curved vanes and compare it with the value calculated from flow rate and velocity.
- Force of a jet on a flat vane
- Force on curved and hemispherical vanes
- Comparison of measured and theoretical force
- Momentum principle in fluid mechanics
- Fluid mechanics practicals in B.Tech, diploma and AMIE courses
Scope of supply and ordering
The listing covers one closed circuit jet on vane apparatus in the configuration agreed on the quotation.
There is no fixed MOQ on this listing: minimum quantity, lead time and packing are stated on the quotation for your order size and destination.
Frequently asked questions
What does the apparatus demonstrate?
The force exerted by a water jet on vanes, used to verify the momentum principle.
Is the water recirculated?
Yes. It is a closed circuit design.
Which vanes and nozzles are supplied?
These are confirmed on the quotation.
Related products
- Pelt on Wheel Turbine Test Rig
- Co-Efficient of Discharge Apparatus
- Notch Apparatus
- Reciprocating Pump Test Rig
See the complete mechanical engineering laboratory range for engineering colleges, polytechnics and ITIs.
Request a quote
For a quotation on the Closed Circuit Jet on Vane Apparatus (SKU JA-HLE-8989), use the JaincoLab enquiry page with the number of units required and the delivery destination. Tender and project enquiries can be sent through the tenders page.
