Gear Oil Pump Test Rig Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8981

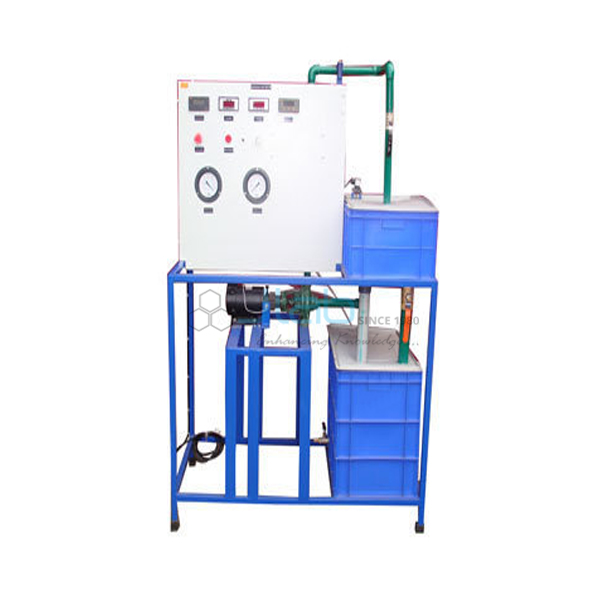

The Gear Oil Pump Test Rig (SKU JA-HLE-8981) is a gear oil pump test rig for studying the performance of a positive displacement gear pump. A 1 HP gear pump with a pair of meshed gears, rated up to 1500 rpm and 5 kg/cm2 head, is driven by a DC motor with DC drive and a non-contact digital rpm indicator, so speed can be varied and read directly. It has a 30 litre supply tank and a 20 litre SS measuring tank. It is manufactured by JaincoLab.
Specifications
The rig uses a 1 HP meshed-gear pump (1500 rpm max, 5 kg/cm2 max head) on a DC motor and drive with digital rpm indicator, a 30 L supply tank and a 20 L SS measuring tank with piezometer tube and scale.
| Product | Gear Oil Pump Test Rig |
| SKU | JA-HLE-8981 |
| Pump | Gear pump with a pair of meshed gears; 1 HP |
| Speed | 1500 rpm (max.) |
| Head | 5 kg/cm2 (max.) |
| Drive | DC motor with DC drive; non-contact digital rpm indicator |
| Supply tank | 30 litres |
| Measuring tank | 20 litres, SS, with piezometer tube and scale |
| Electric supply | 230 V +/-10% AC, 50 Hz, single phase with earthing; 5 A three pin socket with switch |
Applications of the gear oil pump test rig
Students run the gear pump at set speeds and delivery pressures, measure oil discharge and input power, and plot discharge and efficiency curves for a positive displacement pump.
- Performance characteristics of a gear pump
- Discharge against speed and delivery pressure
- Volumetric and overall efficiency
- Comparison with centrifugal pump behaviour
- Hydraulic machines practicals in B.Tech, diploma and AMIE courses
Scope of supply and ordering
The listing covers the gear oil pump test rig with DC drive, rpm indicator, supply tank and measuring tank as described. Test oil is not included unless stated on the quotation.
There is no fixed MOQ on this listing: minimum quantity, lead time and packing are stated on the quotation for your order size and destination.
Frequently asked questions
What pump is fitted?
A 1 HP gear pump with a pair of meshed gears, up to 1500 rpm and 5 kg/cm2 head.
How is speed varied?
By a DC motor with DC drive, read on a non-contact digital rpm indicator.
What tanks are provided?
A 30 litre supply tank and a 20 litre SS measuring tank with piezometer tube and scale.
