Francis Turbine Test Rig Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8978

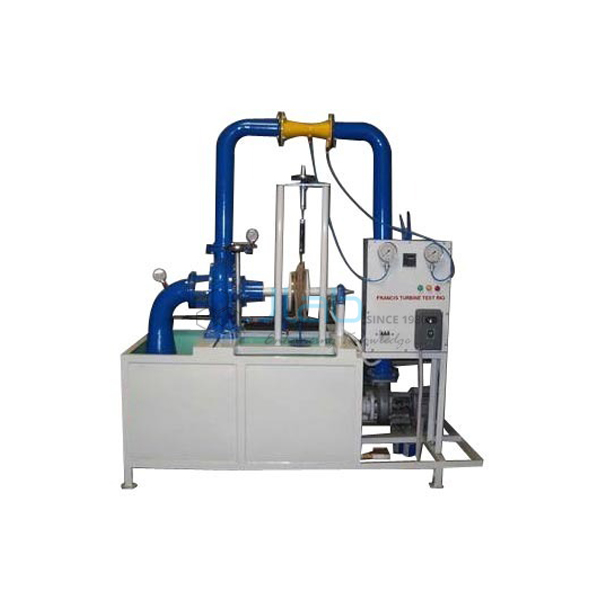

The Francis Turbine Test Rig (SKU JA-HLE-8978) is a Francis turbine test rig with an inward flow reaction turbine for performance testing in the hydraulic machines lab. It is rated 5 HP at 1250 rpm with 1800 litres per minute discharge at 25 m supply head. Gun metal guide vanes of aerofoil blade shape direct the flow, and output is measured by rope brake loading on a 300 mm cast iron drum. It is manufactured by JaincoLab for engineering colleges and polytechnics.
Specifications
The rig uses an inward flow reaction turbine rated 5 HP at 1250 rpm, taking 1800 litres/minute at 25 m supply head, with gun metal aerofoil guide vanes, cast iron construction and rope brake on a 300 mm drum.
| Product | Francis Turbine Test Rig |
| SKU | JA-HLE-8978 |
| Type | Inward flow reaction turbine |
| Capacity | 5 HP |
| Rated speed | 1250 rpm |
| Discharge capacity | 1800 litres/minute |
| Supply head | 25 m |
| Guide vanes | Gun metal, aerofoil blade shaped |
| Loading | Rope brake |
| Material | Cast iron |
| Brake drum size | 300 mm diameter |
Applications of the Francis turbine test rig
Students run the reaction turbine at various gate openings and loads, measure head, flow, speed and brake power, and plot efficiency and unit characteristic curves.
- Performance test of a reaction turbine
- Effect of guide vane opening
- Efficiency against speed and load
- Main and operating characteristic curves
- Hydraulic machines practicals in B.Tech, diploma and AMIE courses
Scope of supply and ordering
The listing covers the Francis turbine with rope brake dynamometer as described. The supply pump, flow measurement and gauges are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, lead time and minimum order quantity depend on the quantity and delivery destination and are confirmed on each quotation. Institutional, bulk and tender orders are supplied, including export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What type of turbine is it?
An inward flow reaction turbine (Francis type).
What are its ratings?
5 HP at 1250 rpm, with 1800 litres per minute at 25 m supply head.
What are the guide vanes made of?
Gun metal, aerofoil blade shaped.
Related products
- Pelt on Wheel Turbine Test Rig
- Kaplan Turbine Test Rig
- Reciprocating Pump Test Rig
- Hydraulic Ram Test Rig
Browse the full mechanical engineering lab equipment range from JaincoLab, covering strength of materials, metrology, machine dynamics and workshop equipment.
Request a quote
Request the price and specification sheet for the Francis Turbine Test Rig through the JaincoLab contact page; mention SKU JA-HLE-8978, the quantity and where it is to be delivered. Buying under a laboratory tender? Use our tenders page.
