Rota Meter Test Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8975

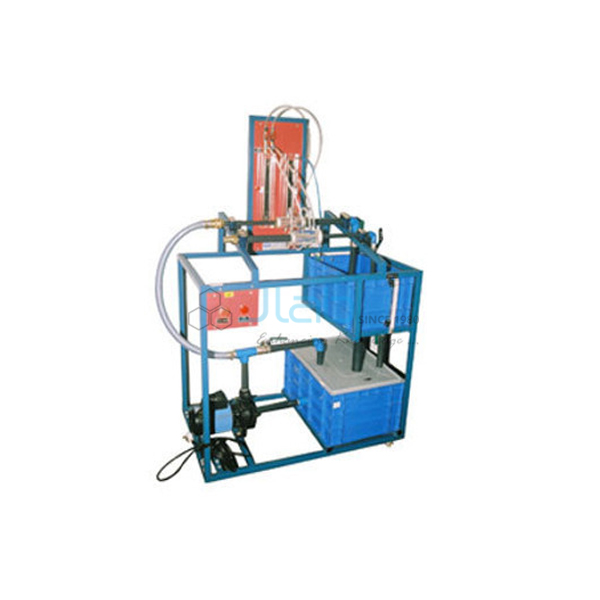

The Rota Meter Test Apparatus (SKU JA-HLE-8975) is a rotameter test apparatus for studying variable-area flow measurement and calibrating rotameters. Two rotameters, of 20 mm and 25 mm size, are fitted in their respective pipelines, and the actual flow is checked against a measuring tank so students can compare the indicated and true flow rates. The unit runs from a single phase 200/220 V supply with water in its sump tank. It is manufactured by JaincoLab for fluid mechanics labs.
Specifications
The apparatus carries two rotameters, 20 mm and 25 mm, each in its own pipeline, and needs a single phase 200/220 V supply and water in the sump; pump rating and measuring tank size are confirmed on the quotation.
| Product | Rota Meter Test Apparatus |
| SKU | JA-HLE-8975 |
| Rotameters | Two: 20 mm and 25 mm |
| Pipelines | One for each rotameter |
| Services required | Single phase 200/220 V; water to fill the sump tank |
| Pump rating and measuring tank | Confirmed on the quotation |
Applications of the rotameter test apparatus
Students set flows through each rotameter, read the float position and time the actual discharge, producing a calibration curve and learning how variable-area meters work.
- Calibration of rotameters
- Variable-area flow measurement principle
- Comparing indicated and actual flow
- Comparing two meter sizes
- Fluid mechanics and instrumentation practicals in B.Tech and diploma courses
Scope of supply and ordering
The listing covers the rotameter test apparatus with 20 mm and 25 mm rotameters and pipelines. The pump, sump and measuring tank details are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Each quotation confirms the MOQ, lead time and packing for this item against the quantity ordered and the delivery destination. Orders for a single laboratory as well as multi-laboratory sets for new institutions are supplied.
Frequently asked questions
What rotameter sizes are fitted?
Two rotameters, 20 mm and 25 mm.
What services does it need?
A single phase 200/220 V supply and water to fill the sump tank.
What is the experiment?
Calibration of the rotameters against actual discharge.
Related products
- Venturi meter and Orifice meter Apparatus
- Bernoulli Theorem Apparatus
- Co-Efficient of Discharge Apparatus
- Notch Apparatus
See the complete mechanical engineering laboratory range for engineering colleges, polytechnics and ITIs.
Request a quote
Request the price and specification sheet for the Rota Meter Test Apparatus through the JaincoLab contact page; mention SKU JA-HLE-8975, the quantity and where it is to be delivered. Institutions and contractors buying under a tender can also reach us via the tenders page.
