Co-Efficient of Discharge Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8951

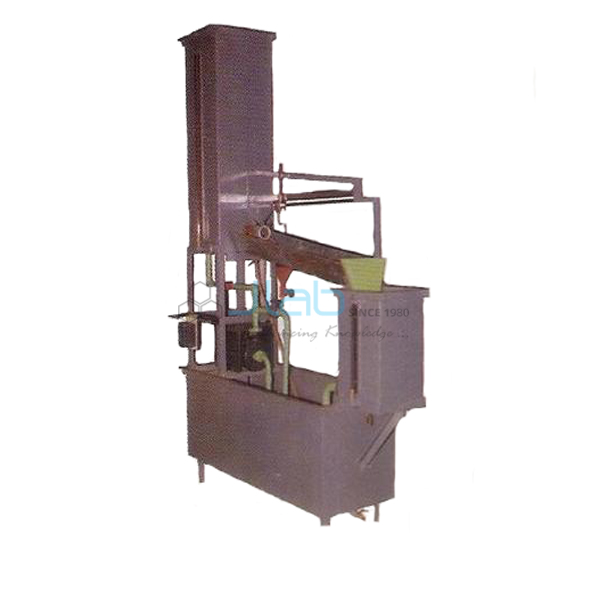

The Co-Efficient of Discharge Apparatus (SKU JA-HLE-8951) is a coefficient of discharge apparatus for determining the discharge coefficient of flow devices in the fluid mechanics lab. It is a self-contained unit mounted on a framework and fitted with all its items, so it can be operated without a foundation. A 0.5 HP single phase pump with control valve circulates water from the sump. It is manufactured by JaincoLab for engineering colleges and polytechnics.
Specifications
The apparatus is a self-contained framework unit with a 0.5 HP single phase pump and control valve drawing from a sump; it needs a 200/220 V single phase supply and water to fill the sump. Orifice sizes and tank dimensions are confirmed on the quotation.
| Product | Co-Efficient of Discharge Apparatus |
| SKU | JA-HLE-8951 |
| Type | Self-contained unit on framework; no foundation required |
| Pump | 0.5 HP single phase, with control valve |
| Water circuit | Pumped from sump tank |
| Services required | Single phase 200/220 V supply; water to fill the sump tank |
| Orifices and tank dimensions | Confirmed on the quotation |
Applications of the coefficient of discharge apparatus
Students measure actual discharge through the flow device and compare it with the theoretical value, finding the coefficient of discharge and how it varies with head.
- Coefficient of discharge of an orifice or mouthpiece
- Coefficient of velocity and contraction
- Variation of discharge with head
- Flow measurement with a measuring tank
- Fluid mechanics practicals in B.Tech, diploma and AMIE courses
Scope of supply and ordering
The listing covers the self-contained apparatus with pump, control valve and sump on its framework. The set of orifices or mouthpieces supplied is stated on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Each quotation confirms the MOQ, lead time and packing for this item against the quantity ordered and the delivery destination. Orders for a single laboratory as well as multi-laboratory sets for new institutions are supplied.
Frequently asked questions
Does it need a foundation?
No. It is a self-contained unit suitable for operation without a foundation.
What pump is fitted?
A 0.5 HP single phase pump with a control valve.
What services are needed?
A single phase 200/220 V supply and water to fill the sump tank.
