Venturi meter and Orifice meter Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-HLE-8958

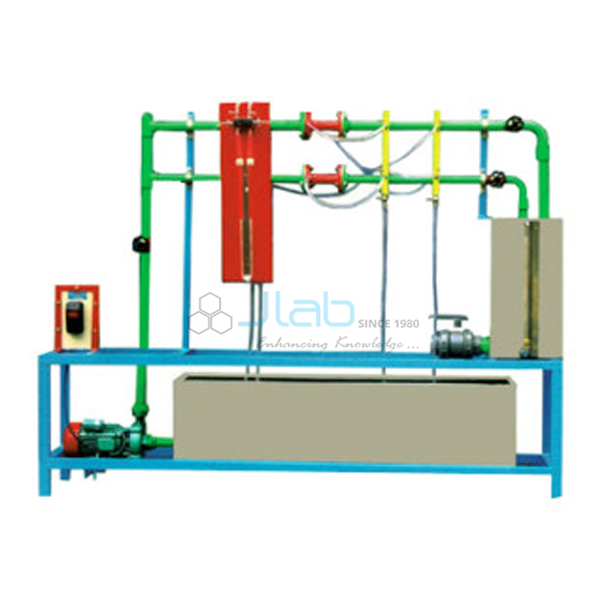

The Venturi meter and Orifice meter Apparatus (SKU JA-HLE-8958) is a venturi meter and orifice meter apparatus for calibrating both flow meters and finding their coefficients of discharge. Two G.I. pipelines each carry a 25 mm venturi meter and orifice meter with a gate valve, and a distribution chamber with isolating cocks lets each meter be tested on its own. A 0.5 HP single phase pump with control valve supplies water from the sump. It is manufactured by JaincoLab.
Specifications
The apparatus has two G.I. pipelines, each with a 25 mm venturi meter and orifice meter and gate valve, a distribution chamber with isolating cocks and a 0.5 HP single phase pump; it needs 200/220 V and water for the sump.
| Product | Venturi meter and Orifice meter Apparatus |
| SKU | JA-HLE-8958 |
| Pipelines | Two G.I. pipe lines |
| Meters | Venturi meter and orifice meter, 25 mm, on each line |
| Valves | Gate valve per line; distribution chamber with isolating cocks |
| Pump | 0.5 HP single phase, with control valve |
| Services required | Single phase 200/220 V; water to fill the sump tank |
| Manometer and measuring tank | Confirmed on the quotation |
Applications of the venturi meter and orifice meter apparatus
Students measure the pressure difference across each meter and the actual flow, then calculate the coefficient of discharge and compare the head loss of a venturi with that of an orifice plate.
- Calibration of a venturi meter
- Calibration of an orifice meter
- Coefficient of discharge against flow rate
- Comparison of meter head losses
- Fluid mechanics practicals in B.Tech, diploma and AMIE courses
Scope of supply and ordering
The listing covers the two-line apparatus with venturi and orifice meters, valves, distribution chamber, pump and sump. The differential manometer and measuring tank are confirmed on the quotation.
Frequently asked questions
What size are the meters?
The venturi meters and orifice meters are 25 mm.
Can each meter be tested separately?
Yes. A distribution chamber with isolating cocks allows experiments on individual meters.
What pump is fitted?
A 0.5 HP single phase pump with a control valve.
