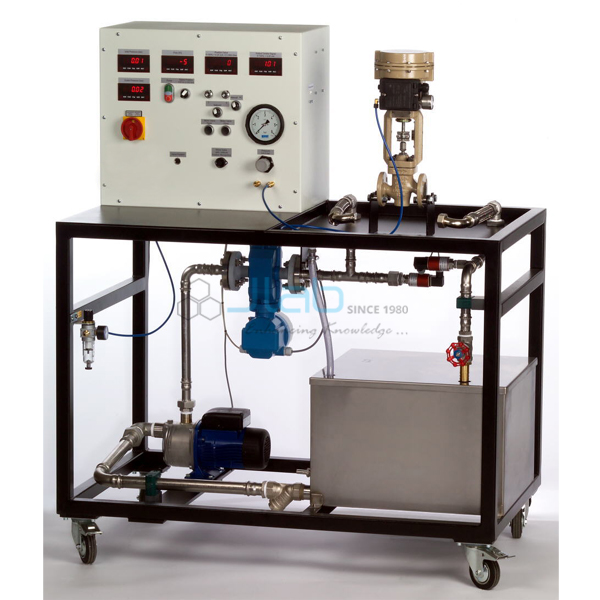

Test Stand for Control Valves

Product Code : JA-AM-6463
Jaincolab is a leading Test Stand for Control Valves Manufacturer,and suppliers in India, Test Stand for Control Valves Manufacturer,and suppliers in South Africa, Test Stand for Control Valves Algeria (Algiers), Test Stand for Control Valves Angola (Luanda), Test Stand for Control Valves Argentina (Buenos Aires), Test Stand for Control Valves Armenia (Yerevan), Test Stand for Control Valves Australia (Canberra), Test Stand for Control Valves Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Test Stand for Control Valves

Specification:

  • Investigation and testing of control valves.
  • Water circuit with tank, pump and connections for control valves.
  • Electromagnetic flow rate sensor.
  • 2 pressure sensors to measure the pressure drop over the control valve.
  • Gate valve to adjust the flow rate.
  • Potentiometer to actuate electro-pneumatic valves with a current signal.
  • Pushbuttons to actuate motorised valves.
  • Manometer and pressure regulator to adjust the working pressure for electro-pneumatic valves.
  • Position feedback via current signal (electro-pneumatic valves) or resistance teletransmitter (motorised valves).



Technical Data

  • Tank: approx. 90L.
  • Max. head: 20m.
  • Max. flow rate: 4m³/h.
  • Two-stage centrifugal pump.



Auxiliary Power

  • AC: 24V
  • Air pressure for electro-pneumatic valves : 0...6 bar



Signals

  • DC: 4...20mA
  • Resistance: 0...1000 Ohm



Measuring ranges

  • Flow rate: 0...5000L/h
  • Pressure (water): 2x 0...6 bar
  • Pressure (compressed air): 0...6 bar
