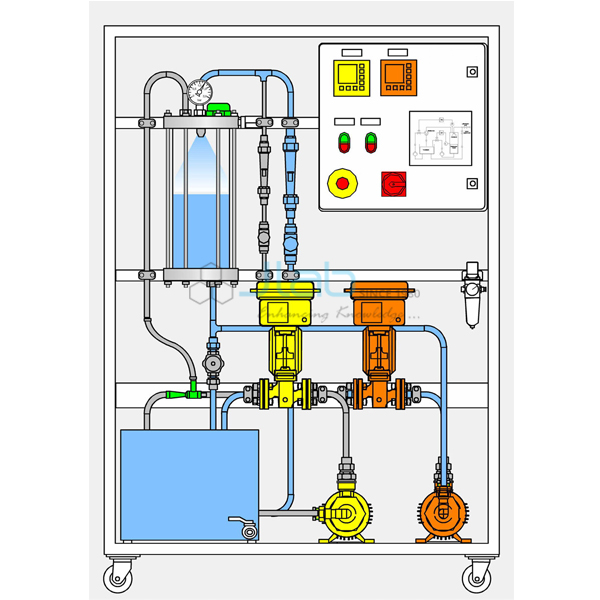

Test Stand for Level Pressure Control

  • This high quality test stand enables to perform complex experiments on a multivariable system often used in practice.
  • In this particular case, a vacuum degassing model is used as an example of an interacting two-variable control system.
  • Vacuum and level are the two variables to be controlled in a process tank.
  • Pressure and level are interdependent variables.
  • The system has a closed water circuit.
  • The vacuum is generated by a water jet pump with its own water circuit.
  • Two pneumatic control valves control vacuum generation and discharge from the tank.
  • The test stand contains high quality instrumentation.
  • The controllers have a Profibus DP interface.
  • This interface allows the test stand to be monitored by optional process control software RT 650.60.
  • This software can also be used to record process variables and to tune controller parameters via PC.
