Drum Cell Filter Manufacturer,Supplier and Exporter in India
Product Code : JA-AM-6488
Jaincolab is a leading Drum Cell Filter Manufacturer,and suppliers in India, Drum Cell Filter Manufacturer,and suppliers in South Africa, Drum Cell Filter Algeria (Algiers), Drum Cell Filter Angola (Luanda), Drum Cell Filter Argentina (Buenos Aires), Drum Cell Filter Armenia (Yerevan), Drum Cell Filter Australia (Canberra), Drum Cell Filter Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

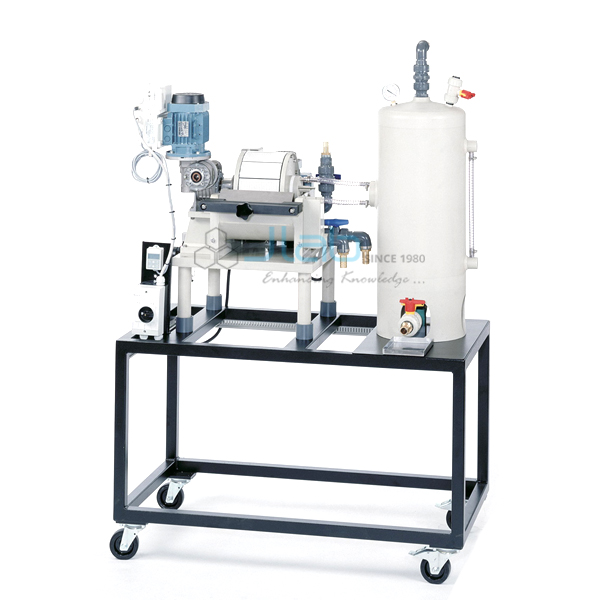

Drum Cell Filter
Specification of Drum Cell Filter:
- Continuous cake filtration of suspensions with a drum cell filter.
- Rotating perforated drum, partially immersed in suspension, with filter cloth.
- Vacuum inside drum to draw off filtrate and dry filter cake.
- Continuous removal of filter cake with adjustable scraper or compressed air.
- Drum speed infinitely variable.
- Plastic vacuum tank to collect filtrate.
- Suspension tank with stirrer and overflow.
- Plastic collector tank for filter cake.
Technical Data:
Drum
- Filter Area: Approx. 0,1m²
- Speed: Approx. 0,1...3min-1
- Motor power consumption: approx. 300W
Stirrer
- Speed: Approx. 15min-1
- Motor power consumption: approx. 120W
Tanks
- Filtrate Vacuum Tank: Approx. 30l
- Filter Cake Collector Tank: Approx. 30l
- Suspension: approx. 3L
Measuring ranges
- Vacuum Tank Pressure: -1...0bar
- Cake remover compressed air: 0...2bar
