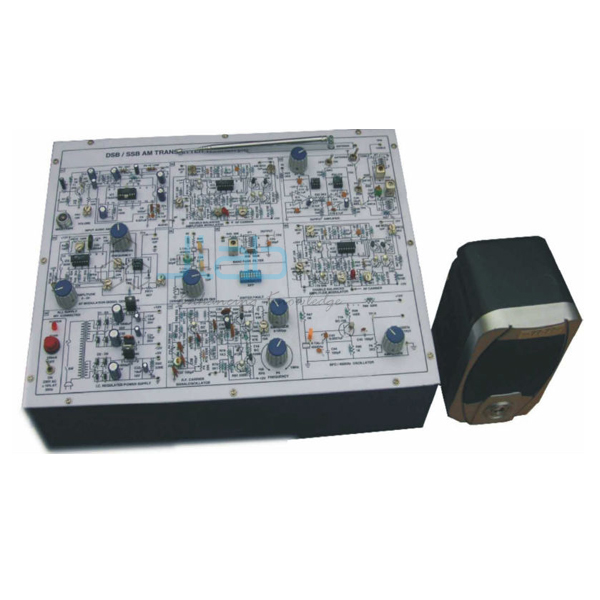

DSB and SSB AM Transmitter Trainer

Product Code : JA-CT-1510
Jaincolab is a leading DSB and SSB AM Transmitter Trainer Manufacturer,and suppliers in India, DSB and SSB AM Transmitter Trainer Manufacturer,and suppliers in South Africa, DSB and SSB AM Transmitter Trainer Algeria (Algiers), DSB and SSB AM Transmitter Trainer Angola (Luanda), DSB and SSB AM Transmitter Trainer Argentina (Buenos Aires), DSB and SSB AM Transmitter Trainer Armenia (Yerevan), DSB and SSB AM Transmitter Trainer Australia (Canberra), DSB and SSB AM Transmitter Trainer Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

DSB And SSB AM Transmitter
Object:
Study of carrier frequency generation

Study of DSB / SSB AM Generation & Transmission

Study of Transmitter tuned circuits

Specification:
The board consists of the following built-in parts:
AF Modulating signal generator : Sine wave

Frequency Range : 300 Hz to 3.4 KHz

Amplitude : 0 to 5 Vpp

RF carrier signal oscillator :
Frequency Range : 100 KHz to 1 Mhz

Amplitude : 0 to 10 Vpp

Modulators (Two Nos) : Double Balanced Amplitude modulator

Ceramic Band Pass Filter : 452 KHz to 458 KHz

Band Pass Filter : 1 No

Switch faults : 8 Nos

POWER SUPPLY : ± 12DC and +5V DC IC Regulated power supply

Test points : 27 Nos

BFO Oscillator : 455 KHz

Input Audio amplifier with Volume Control for modulating external signal from Mike or Tape recorder

Output Amplifier Transmitter: (Gain adjustable) DSB (1MHz), SSB (1.445 MHz) connected to Antenna/cable

Mains ON/OFF switch, fuse and jewel light

Power supply requirement 230V AC, 50 Hz

Dynamic Microphone with 4mm Jack Pin

Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms

Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design Procedures, Report Suggestions and Book References

Other Apparatus Required:
Cathode Ray Oscilloscope of 20MHz



LAN Trainer
DSB and SSB AM Receiver Trainer
