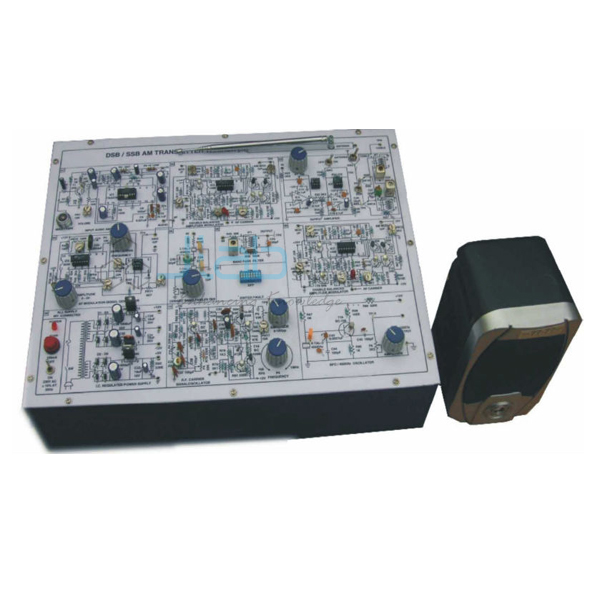

DSB and SSB AM Receiver Trainer

Product Code : JA-CT-1511
Jaincolab is a leading DSB and SSB AM Receiver Trainer Manufacturer,and suppliers in India

DSB And SSB AM Receiver Trainer

Object:
Study of DSB & SSB AM reception & deletion by diode / product detectors

Study of AGC

Study of receiver tuned circuits

Study of Sensitivity, Selectivity & Fidelity of Receiver


Experiments:
Study of double sideband AM reception using envelope detector via cable.

Study of double sideband AM reception using envelope detector via Antenna.

Study of sensitivity, selectivity, of a radio receiver.

Study of single sideband AM reception using product detector.

Study of Image frequencies.

Voice transmission with DSB AM transmission / reception.

Feature:
The board consists of the following built-in parts:
POWER SUPPLY : ± 12DC and +5V DC IC Regulated power supply


Detectors/Demodulator:
Diode Detector (For DSB)

Product Detector (For SSB)

Frequency Range : 980KHz to 1650 KHz

Intermediate frequency : 455 KHz


Input Circuits:
RF Amplifier

Mixer

1st Amplifier

2nd Amplifier

Local oscillator

Envelope Detector (AGC)

Switch Fault

Product Detector

IC Regulated Power Supply

Beat frequency oscillator / 455 KHz Crystal oscillator

Output Audio Amplifier

Receiving media : Telescopic Antenna / cable

Tuning : with variable capacitor

Switched faults : 8Nos

Test points : 50

Power supply requirement : 230V AC, 50 Hz

Mains ON/OFF switch, fuse and LED

Audio Output amplifier with Volume Control

Loud Speaker with baffle fitted in a box with two metre wire and 2mm Banana pins for connections

Adequate no. of patch cords stackable from rear both ends 2mm spring loaded plug length ½ metre

Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms

Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design Procedures, Report Suggestions and Book References


Other Apparatus Required:
Cathode Ray Oscilloscope 20MHz.
