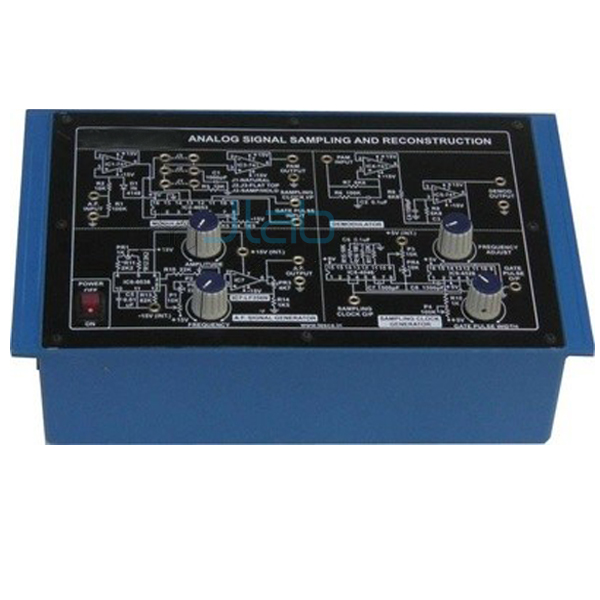

Analog Signal Sampling and Reconstruction
Object:
To study Sampling Theorem using Pulse Amplitude Modulation and Demodulation
To generate PAM signal by modulating with audio signal by natural sampling
To generate PAM signal by modulating with audio signal by Flat-Top sampling
To generate PAM signal by modulating with audio signal by Sample / Hold circuit
To demodulate using Low Pass Filter to reconstruct input(sine wave)
Features:
The board consists of following built in parts:
±15V D.C. at 100mA, IC Regulated Power Supply
+5V D.C. at 100mA, IC Regulated Power supply
A.F. signal generator for modulating signal
Sampling clock generator to provide sampling clock and gate pulse
Modulator circuit for Flat-top natural and S/H circuit
Demodulator circuit to reconstruct input (sinewave)
Mains ON/OFF switch, Fuse and Jewel light
Adequate no. of patch cords stackable 4mm spring loaded plug length ½ metre
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
Other Apparatus Required:
Dual Scope Cathode Ray Oscilloscope 20MHz
