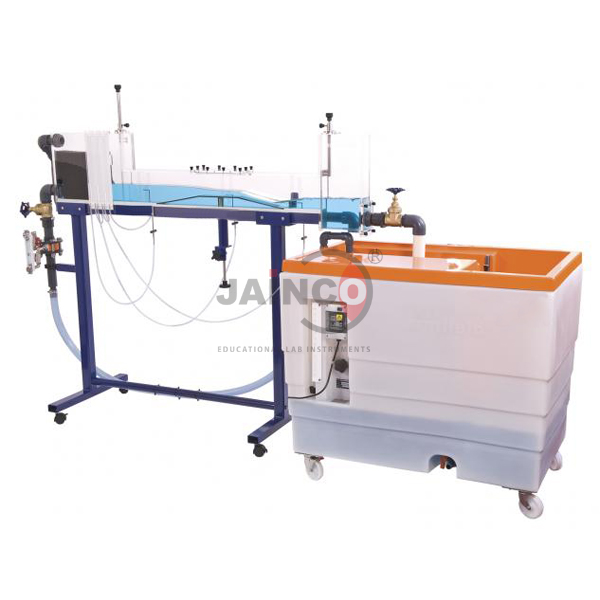

Hydraulic Flow Demonstrator

Description:-

Models of hydraulic structures supplied include Undershot Weir (Sluice gate) at the inlet, Overshot Weir at the outlet, Sharp Crested Weir, Broad Crested Weir (also used to create a Culvert) and Ogee Weir

Suitable for project work with alternative hydraulic structures (user created)

Optional direct reading flowmeter to aid setting up of demonstrations

Working section 77mm wide, 150mm high and 1100mm long

Can be configured to demonstrate flow in open channels and closed conduits

Discharge tank incorporates flow control valve for convenience in setting up

Total and static heads indicated on multi-tube manometer connected to Pitot tubes and static tappings at three locations in working section

Pitot tubes mounted through bed of channel for ease of priming and height adjustment (can be traversed from floor to roof to measure velocity profile)

Transparent scales allow measurement of all important heights and levels

Comprehensive instruction manual supplied

Clear acrylic sides for good visibility of flow patterns created

Stilling arrangement at inlet to promote smooth flow into the working section

Section of bed can be elevated continuously and locked at the required height
