Triode Valve Characteristics Apparatus with Stabilized Power Supply Manufacturer,Supplier and Exporter in India
Product Code : JA-COVT-1073
The Jaincolab Triode Valve Characteristics Apparatus with Stabilized Power Supply is used to study the V-I characteristics of a triode valve at various grid voltages, built around a valve type ECC82 and a stabilized DC power supply. As a manufacturer and exporter of Scientific Instrument equipment based in Ambala, Haryana, Jaincolab supplies this triode valve characteristics apparatus to educational and industrial laboratories across India.

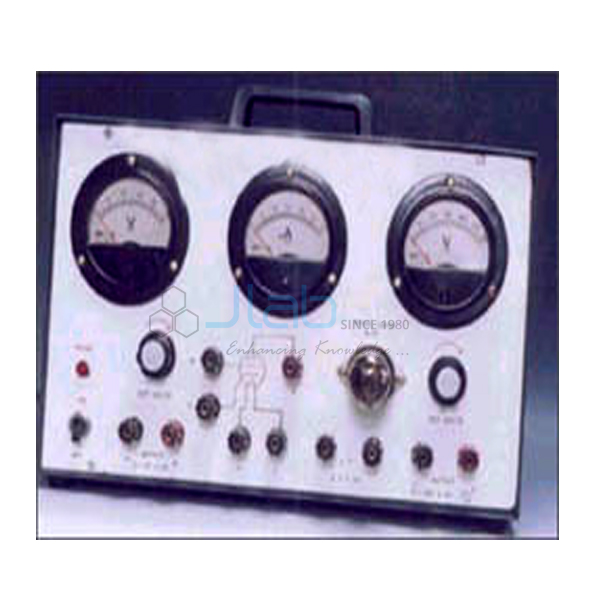

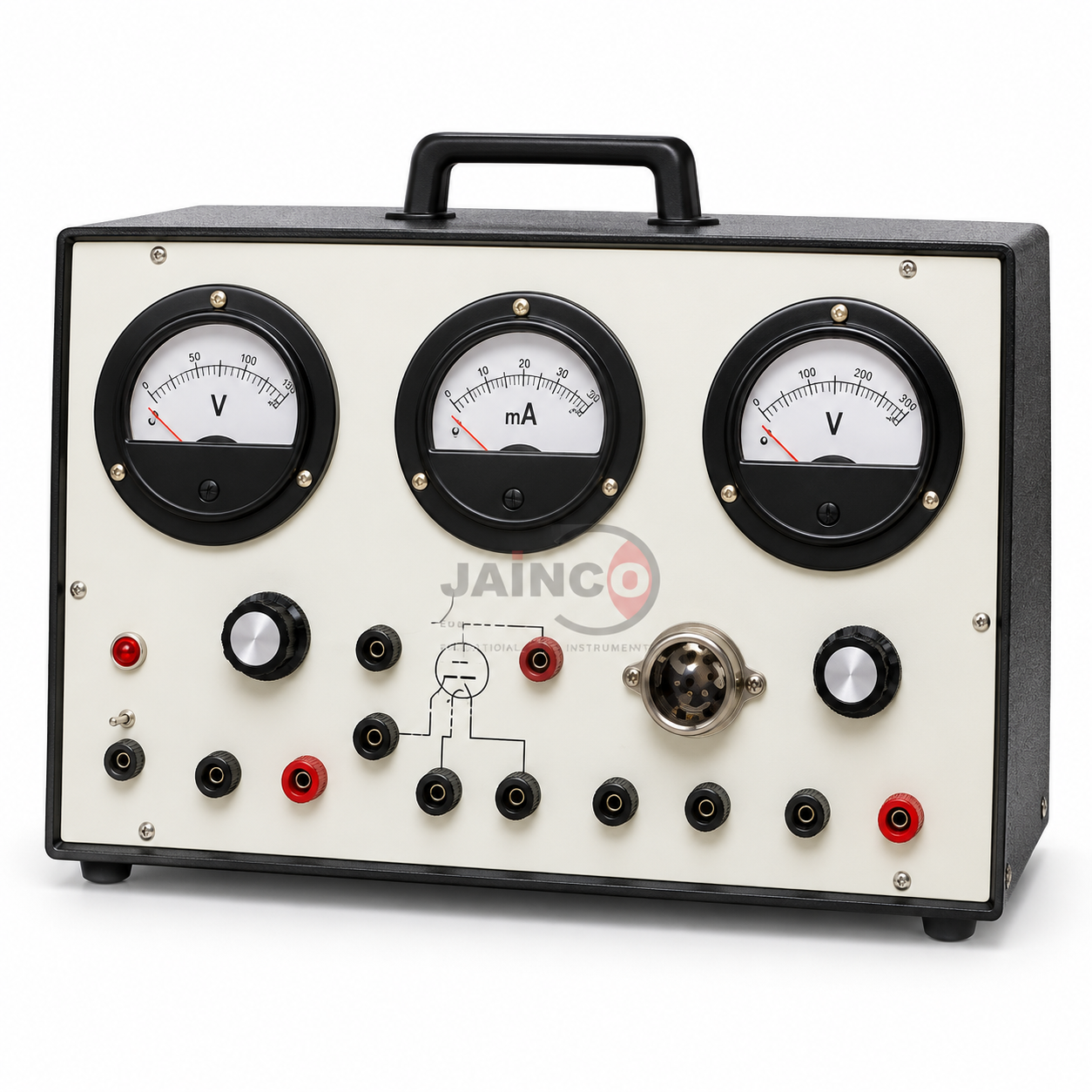

The instrument comprises a D.C. regulated power supply (TE-3) of 0-300V D.C./30mA and 0-25V D.C., plus a 6.3V A.C./1 Amp supply, with three round meters for voltage and current measurement. The valve used is an ECC82, and the compact unit measures 11" x 7.5" x 5.5".
Specifications
| Parameter | Specification |
|---|---|
| Activity | V-I characteristics of triode valve at various grid voltages |
| D.C. Power Supply | Regulated (TE-3), 0-300V D.C./30mA and 0-25V D.C. |
| A.C. Supply | 6.3V A.C., 1 Amp |
| Meters | Three round meters, for voltage and current measurement |
| Valve | ECC82 |
| Dimensions | 11" x 7.5" x 5.5" |
Key Features
- Studies V-I characteristics of a triode valve across various grid voltages
- Stabilized D.C. regulated power supply (TE-3) with 0-300V/30mA and 0-25V ranges, plus 6.3V A.C./1 Amp filament supply
- Three round meters for direct voltage and current readings
- Uses valve type ECC82 in a compact 11" x 7.5" x 5.5" panel
Why Choose Jaincolab
Jaincolab (Jain Scientific Suppliers, Ambala, Haryana) has manufactured and supplied laboratory and electronic measuring instruments, including the Triode Valve Characteristics Apparatus, for school, college and university physics and electronics laboratories across India and internationally since 1982. Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Explore related Scientific Instrument equipment from Jaincolab:
- Diode Valve Characteristics Apparatus
- Tetrode and Pentode Valve Characteristics Apparatus
- Thyratron Valve Characteristics Apparatus
- Scientific Instrument category
Applications
| Application Area | Typical Use |
|---|---|
| Electronics Laboratory | Plotting the V-I characteristics of a triode valve at different grid voltages |
| Vacuum Tube Electronics Education | Teaching triode valve amplification and characteristic curves to students |
Frequently Asked Questions
Q: What does this apparatus study?
A: It studies the V-I characteristics of a triode valve at various grid voltages.
Q: Which valve does it use?
A: It uses an ECC82 triode valve.
Q: What power supply specifications does it offer?
A: A stabilized D.C. regulated supply (TE-3) of 0-300V/30mA and 0-25V, plus a 6.3V A.C./1 Amp filament supply.
Q: Is a technical datasheet available before ordering?
A: Full specifications are confirmed at the time of quotation; contact Jaincolab with your requirement for written confirmation.
Q: Is Jaincolab a certified manufacturer?
A: Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Request a Quote
For pricing, lead times and technical clarification on this instrument, contact Jaincolab directly. Request a Quote and our team will confirm specifications and availability for your institution.
