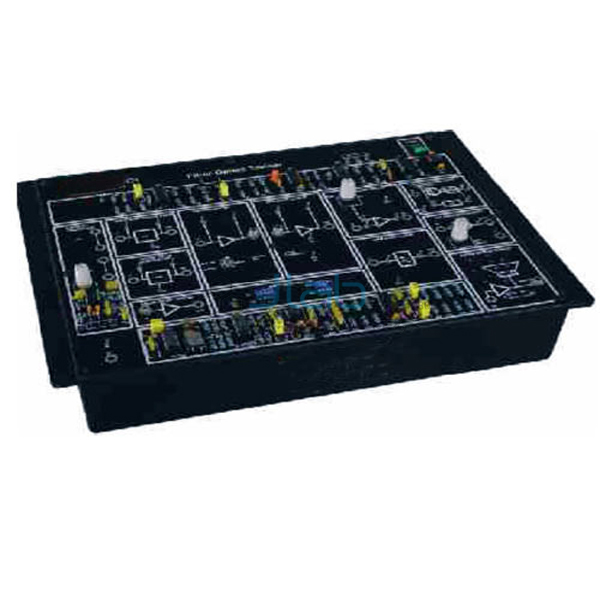

Elementary Fiber Optics Trainer​

Features:

• Simplex Analog and Digital Trans receiver
• 660 nm channel with Transmitter & Receiver
• AM-FM-PWM modulation / demodulation
• On board Function Generator
• Crystal Controlled Clock
• Functional Blocks indicated on-board mimic
• Input-output & test points provided on board
• On board voice link
• Built in DC power supply
• Numerical Aperture measurement jig and mandrel for
• bending loss included
• Switched faults on Transmitter & Receiver
• Operating manual contains theory of Fiber Optics
• Technology, experiments and glossary of Terms
• Experiments that can be performed

Experiments that can be performed:

• Setting up Fiber Optic Analog & Digital Link
• AM system using Analog & Digital Input Signals
• Frequency Modulation System Pulse Width Modulation System
• Study of Propagation Loss in Optical Fiber
• Study of Bending Loss
• Measurement of Numerical Aperture
• Characteristics of E-0 Converter (LED)
• Characteristics of Fiber Optic Communication Link
• Setting of Fiber Optic Voice Link using Amplitude,
• Frequency & PWM Modulation
• Study of Switched Faults in AM,FM & PWM system
• Propagation loss using Optical Power Meter

Technical Specifications:

Transmitter:

• 1 No., Fiber Optic LED having peak
• wavelength of emission 660 nm

Receiver:

• 1 No. Fiber Optic Photo detector

Modulation Techniques:

• AM 2. FM 3.PWM

Drivers:

• 1 No. with Analog & Digital modes

Clock:

• Crystal Controlled Clock 4.096 MHz

PLL Detector:

• 1 No.

AC Amplifier:

• 1 No.

Comparator:

• 1 No.

Th Filters:

• 1 No. 4 order Butterworth, 3.4 KHz cutoff Frequency

Analog Band Width:

• 350 KHz

Digital Band Width:

• 2.5 MHz

Voice Link:

• F. O. Voice link using microphone &
• speaker (built in)

Switched Faults:

• 4 in transmitter & 4 in Receiver

Fiber Optic Cable:

• Connector Type Standard SMA

Cable Type:

• Step indexed multimode PMMA plastic cable

Core Refractive Index:

• 1.492

Clad Refractive Index:

• 1.406

Numerical Aperture:

• Better than 0.5

Acceptance Angle:

• Better than 60 deg.

Fiber Diameter:

• 1000 microns

Outer Diameter:

• 2.2 mm

Fiber Length:

• 0.5 m & 1 m

Test Points:

• 29

Inter connections:

• 4 mm sockets

Power Supply:

• 220 V ±10 %, 50 Hz / 60 Hz on request

Power Consumption:

• 3 VA (approx.)

Accessories Included:

• Line cord, Manuals, NA Measurement
• Jig, Mandrel, Fiber Cables, Microphone,
• Headphone, Set of Patch Cords

Optional Accessories:

• Optical Power Meter, 5 meter fiber cable, 10 meter fiber cable

Function Generator:

• 1 KHz Sine wave (Amplitude adjustable)
• 1 KHz square wave (TTL)
