Adapters - Cone and Screw Thread Manufacturer,Supplier and Exporter in India
Product Code : JA-LAOK-1567

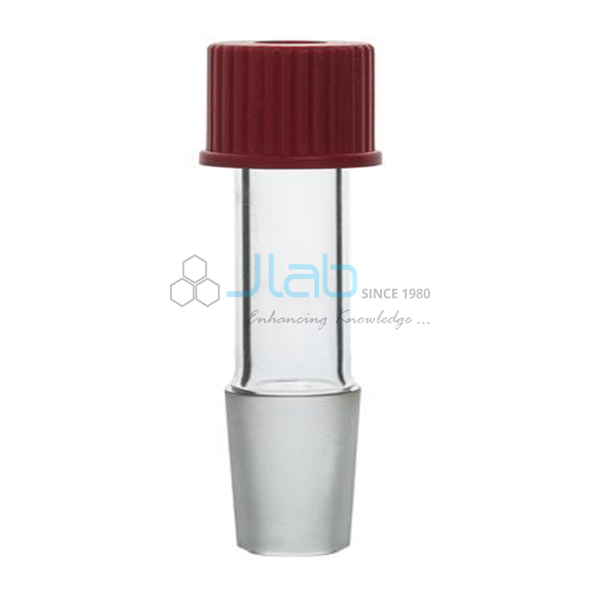

The Adapters - Cone and Screw Thread (product code JA-LAOK-1567) is a cone and screw thread adapter for passing a thermometer, glass tube or probe into a jointed flask. The ground-glass cone fits the flask socket, and the threaded end has a through-hole for the item being inserted, which is held in place with a matching screw cap and seal. Cone sizes run from B14 to B34, with 14, 18 or 24 mm threads, for chemistry teaching and research laboratories.
Specifications
The adapter combines a ground-glass cone with a screw thread and a through-hole. Cone sizes from B14 to B34 are paired with thread sizes of 14, 18 and 24 mm, and the through-hole diameter ranges from about 6.0 mm to 11.5 mm depending on the combination selected.
| Product | Adapters - Cone and Screw Thread |
| SKU / Product code | JA-LAOK-1567 |
| Type | Adapter, ground-glass cone and screw thread |
| Cone sizes | B14 to B34 |
| Thread sizes | 14, 18 and 24 mm |
| Through-hole diameter | Approximately 6.0 mm to 11.5 mm, depending on the combination |
Applications of the cone and screw thread adapter
The adapter is used where a thermometer, tube or sensor must enter a flask through a joint and stay at a set depth while the joint remains closed.
- Holding a thermometer in a reaction or distillation flask
- Passing a gas inlet tube or bubbler tube into a flask
- Inserting a temperature probe or sensor through a ground-glass joint
- Reflux and synthesis set-ups in B.Sc., M.Sc. and research laboratories
Scope of supply and ordering
The listing covers one cone and screw thread adapter in the cone, thread and through-hole combination you select. Screw caps, seals, accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on every quotation, according to quantity and delivery destination. JaincoLab supplies single laboratories, bulk requirements for colleges and institutes, and export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which cone and thread sizes are available?
Cone sizes from B14 to B34 are paired with thread sizes of 14, 18 and 24 mm.
What diameter of thermometer or tube will it take?
The through-hole is about 6.0 mm to 11.5 mm, depending on the combination, so state the outside diameter of the item you want to insert.
Are caps and seals included?
Caps, seals and other accessories are confirmed on the quotation for the combination you order.
Related products
Related adapters from the same range:
- Adapters - Swan Neck, Thread Size GL14
- Adapters - Cone and Socket with T Connection
- Adapters - Multiple, One Parallel and One 45 Degree Neck
- Reduction Adapters
See every item in Laboratory Adapter Oscilloscope Kit or the complete range from JaincoLab, a laboratory glassware manufacturer in India.
Request a quote
To order the Adapters - Cone and Screw Thread, send the sizes, quantities and delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
