Astable Multivibrator using Transistors Manufacturer,Supplier and Exporter in India
Product Code : JA-SOM-1151

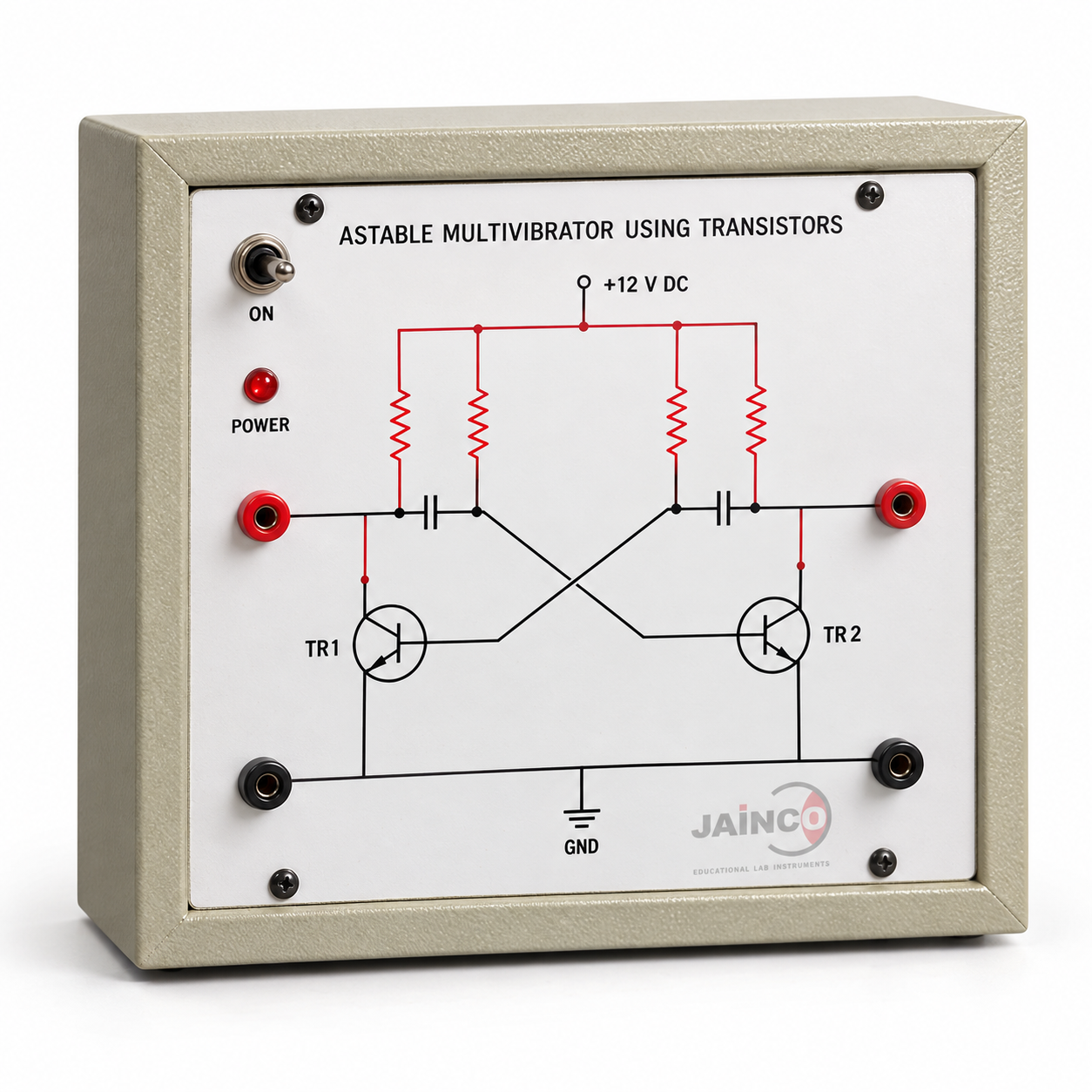

The Astable Multivibrator using Transistors apparatus (SKU JA-SOM-1151) is a cross-coupled transistor network that produces a sharp, continuous square wave. It is a free-running oscillator: positive feedback between the two transistors makes the circuit switch back and forth between two unstable states without any external trigger. Students observe the square-wave output and relate its period to the coupling components. Supply and component values are stated on the quotation.
Specifications
The listing describes the circuit as follows:
| Product | Astable Multivibrator using Transistors |
| SKU | JA-SOM-1151 |
| Circuit | Cross-coupled transistor network |
| Output | Continuous, sharp square wave |
| Operation | Free-running; switches between two unstable states with no external trigger |
| Supply and components | Confirmed on the quotation |
Scope of supply and ordering
Supply ratings, component values, quantities and packing are confirmed on the quotation.
Frequently asked questions
What output does the transistor astable multivibrator give?
A sharp, continuous square wave.
Does it need a trigger pulse?
No, it is free-running and switches between its two unstable states on its own.
Related products
- Bistable Multivibrator using Transistors
- Astable, Monostable and Bistable Multivibrator using Transistor
- Astable Multivibrator using IC 555
- Monostable Multivibrator using IC 555
Other multivibrator circuits are in our scientific instrument range.
Request a quote
For the transistor astable multivibrator, send the quantity through the contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
