Beginner Dual Application Portable Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8043

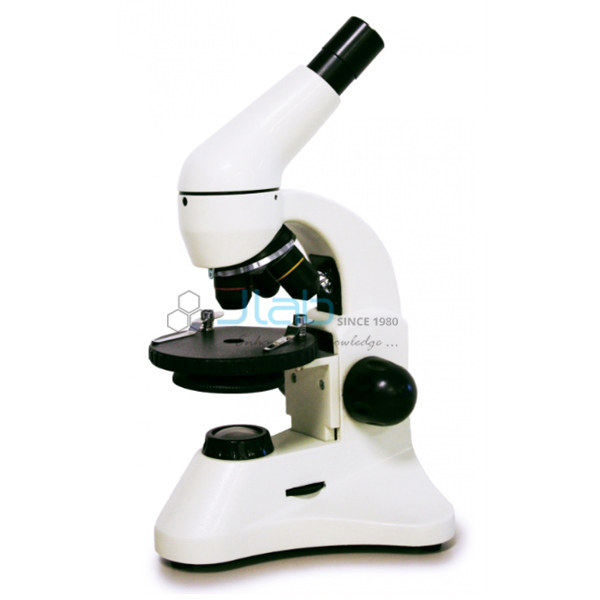

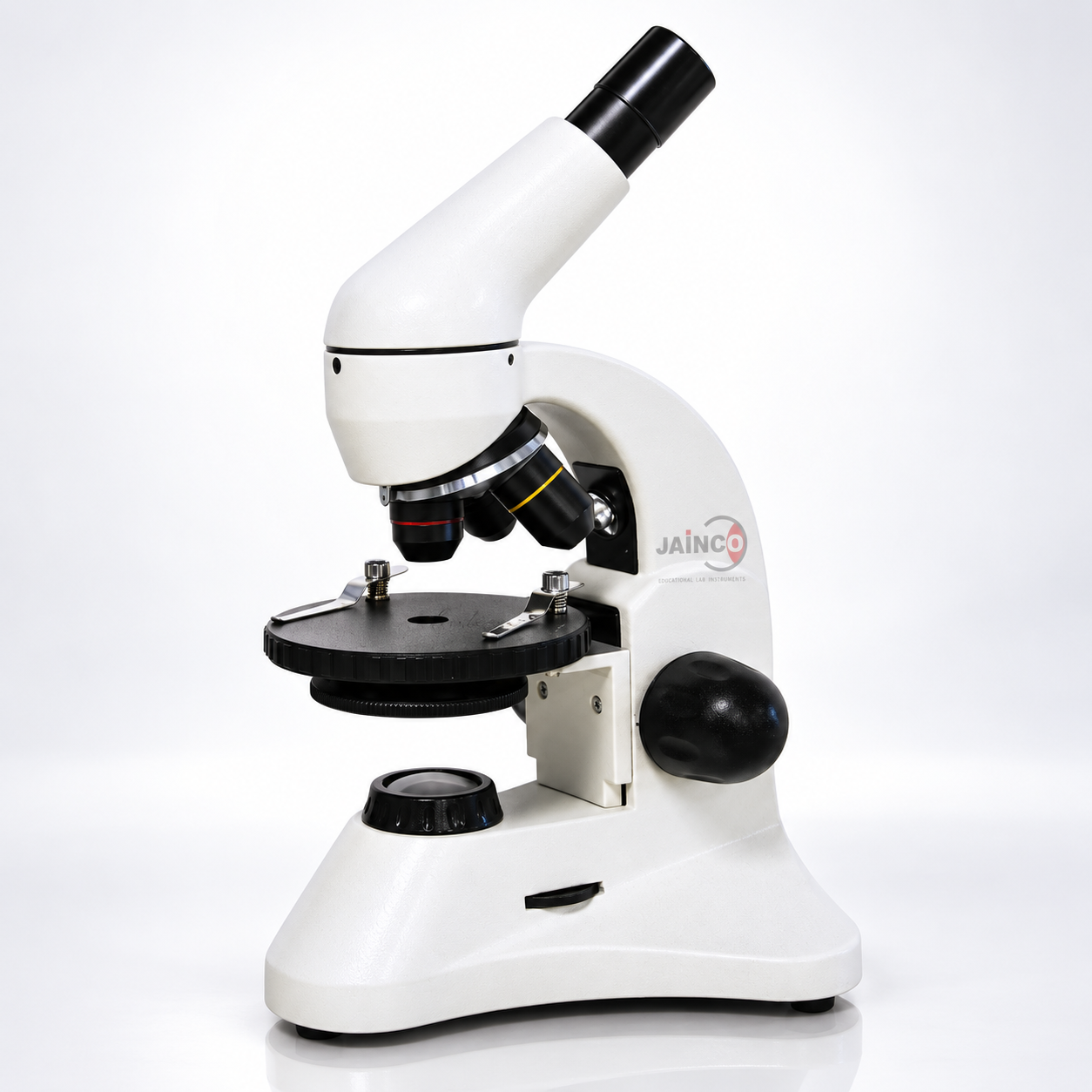

The Beginner Dual Application Portable Microscope (SKU JA-M-8043) is supplied by JaincoLab for students who need one instrument for both transparent slides and solid objects such as flowers, insects and rocks. It gives 40x, 100x and 400x with a WF10x eyepiece, and its 3-way LED lights from above, below or both with intensity control. It runs on two AA batteries or the included AC adapter, so this dual application portable microscope works in class and on field studies.
Specifications
The listing gives a monocular head at 45 degrees rotating 360 degrees, a 3-position reverse nosepiece, a locked-on WF10x eyepiece, 4x, 10x and retractable 40x objectives, coarse focus with safety rack stop, 3-way LED lighting, a 6-hole diaphragm with six colour filters and a 3.5 in rotating stage.
| Product | Beginner Dual Application Portable Microscope |
| SKU | JA-M-8043 |
| Head | Monocular, 45 degrees, rotates 360 degrees |
| Nosepiece | 3-position reverse, positive click stops |
| Eyepiece | Locked-on WF10x, glass optics |
| Objectives | 4x, 10x, 40xR (retractable), colour-coded |
| Magnification | 40x, 100x, 400x |
| Focusing | Coarse focus, safety rack stop |
| Illumination | 3-way LED (top, bottom or both) with intensity control; 6-hole disc diaphragm with white, green, blue, magenta, yellow and cyan filters |
| Power | 2 AA batteries (not included) or included AC adapter |
| Stage | 3.5 in round gliding stage, 360-degree rotation, spring clips |
| Size | 11.1 in high; base 6.5 x 6 in; all-metal |
Applications of the dual application portable microscope
Bottom light is used for micro-observation of prepared slides, and top light turns it into a low-power viewer for opaque objects, so one microscope covers both slide work and specimen study in junior and middle school science and on field trips.
- Prepared and home-made slides
- Opaque specimens under top light
- Colour filter demonstrations
- Field studies on battery power
- Junior and middle school biology
Scope of supply
One unit is one dual application portable microscope with the AC adapter, eyepiece, three objectives and colour filter diaphragm. Batteries are not included; spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Each quotation states the minimum order quantity, the lead time and the packing for the quantity requested and the destination. JaincoLab handles bulk school and college orders and tender supplies, and ships to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Can it view both slides and solid objects?
Yes. Bottom light is for slides and top light is for solid, opaque objects.
How is it powered?
By two AA batteries, not included, or the included plug-in AC adapter.
What magnifications does it give?
40x, 100x and 400x with the WF10x eyepiece.
What should a quotation request include?
Send the SKU JA-M-8043, the quantity and the delivery destination.
Related products
- Young Scientist Dual Scope
- Beginner Microscope Kit with Digital Camera
- LED Corded/Cordless Dual View Microscope
- Dual View Coaxial Focusing Beginner Microscope
See the complete microscopes range for further models and spare parts.
Request a quote
Ask for a quotation on the Beginner Dual Application Portable Microscope (JA-M-8043) through the JaincoLab contact page, giving the quantity required and the delivery destination.
