Callender & Griffith Bridge Manufacturer,Supplier and Exporter in India
Product Code : JA-SI-8063

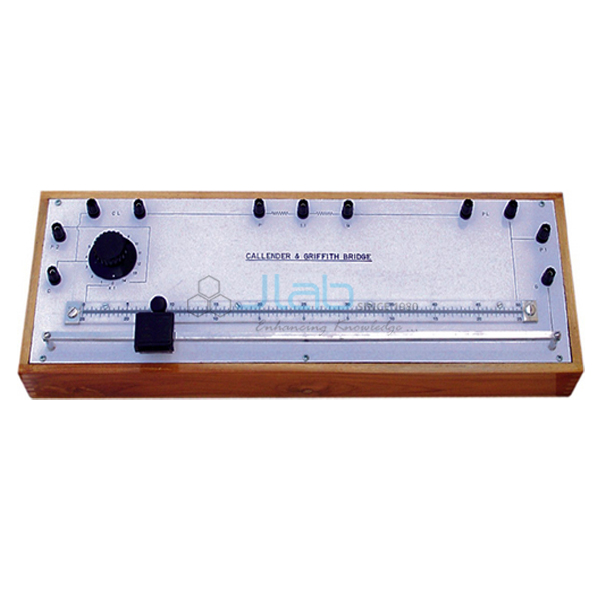

The Callender and Griffith Bridge (SKU JA-SI-8063), the Callendar and Griffiths bridge of physics practicals, is a three-in-one instrument that also works as a Carey Foster bridge and as a potentiometer. Fourteen coils of 1 ohm each are arranged in series in dials, and a 50 cm slide wire of 1 ohm resistance is calibrated into 100 equal parts. The jockey slides on a brass rod, and the terminals are arranged for working the different instruments.
Specifications
Coils, slide wire and jockey as listed:
| Product | Callender & Griffith Bridge |
| SKU | JA-SI-8063 |
| Functions | Callendar and Griffiths bridge, Carey Foster bridge, potentiometer |
| Coils | Fourteen, 1 ohm each, in series in dials |
| Slide wire | 50 cm, 1 ohm, calibrated in 100 equal parts |
| Jockey | Slides on a brass rod |
| Terminals | Arranged for each mode of working |
Scope of supply and ordering
The steam boiler and other accessories are separate items; quantities and packing are confirmed on the quotation.
Frequently asked questions
Which instruments does the bridge combine?
A Callendar and Griffiths bridge, a Carey Foster bridge and a potentiometer.
What are the slide wire details?
A 50 cm slide wire of 1 ohm resistance, calibrated into 100 equal parts.
Related products
- Steam Boiler Element
- Potentiometer Single wire
- Portable Wheatstone Bridge
- Temperature Co-efficient Resistance Coil
Other bridges are listed in our scientific instrument range.
Request a quote
To order the Callender and Griffith bridge, give the quantity on our contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
