Demonstration Model for Experiments of MW Radio Circuits Manufacturer,Supplier and Exporter in India
Product Code : JA-DM-1118

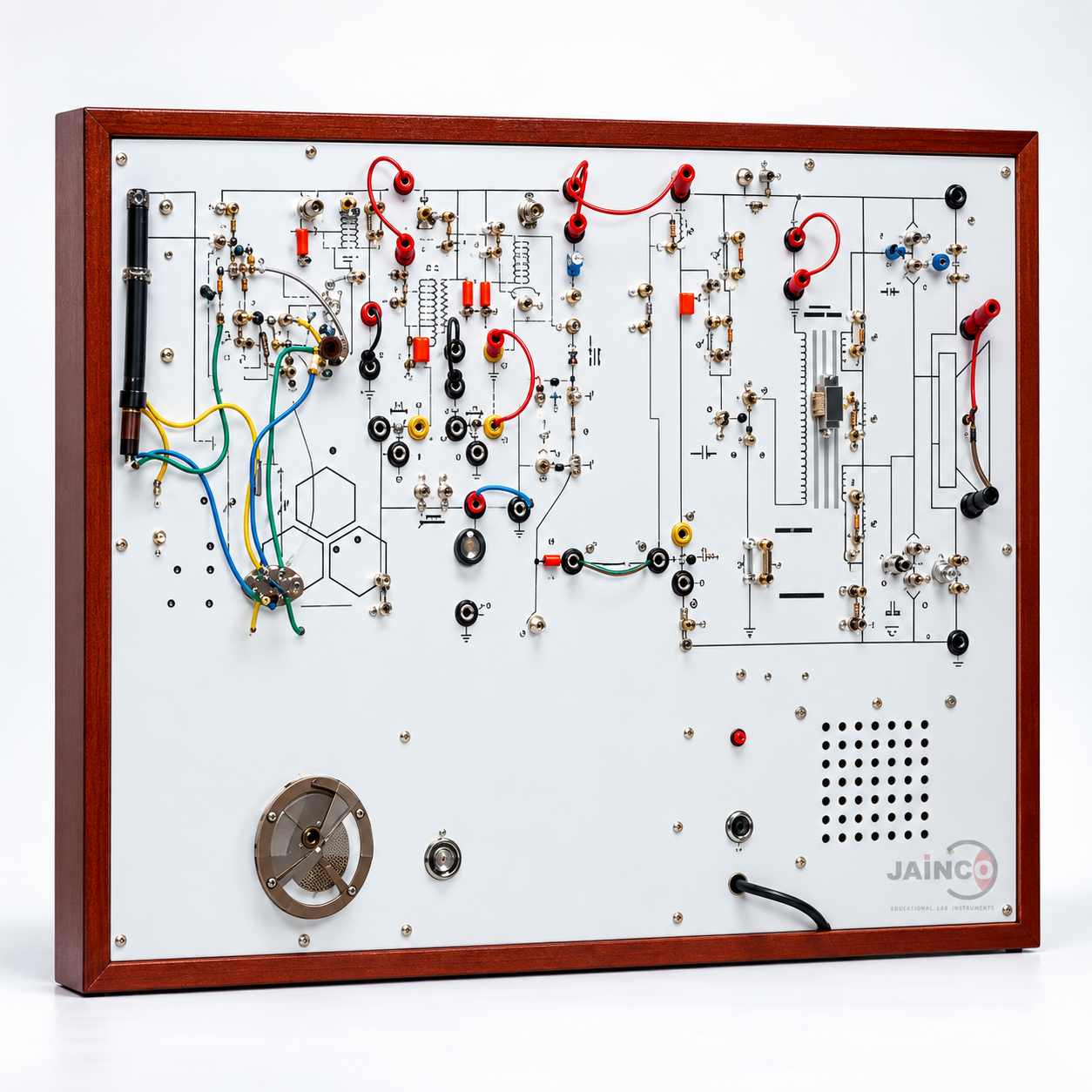

The Demonstration Model for Experiments of MW Radio Circuits (SKU JA-DM-1118) is used to study the working and the various faults of an MW transistor receiver, together with its signal, noise and output. The circuit is drawn on a screen-printed phenolic board and divided into its power supply, AGC, IF, oscillator, antenna and output sections. Components are soldered along the printed circuit, with the important points on terminals; a 6 V DC supply and a 4 inch, 8 ohm speaker are provided.
Specifications
The listing gives these details:
| Product | Demonstration Model for Experiments of MW Radio Circuits |
| SKU | JA-DM-1118 |
| Board | Phenolic sheet, screen-printed with the circuit |
| Sections | Power supply, AGC, IF, oscillator, antenna and output |
| Construction | Components soldered along the circuit, important points on terminals |
| Power supply | 6 V DC, provided |
| Speaker | 4 in, 8 ohm |
Scope of supply and ordering
Supplied with its 6 V DC supply and speaker. Quantities and packing are confirmed on the quotation.
Frequently asked questions
Which receiver sections are shown on the board?
Power supply, AGC, IF, oscillator, antenna and output.
What power and speaker does it use?
A 6 V DC supply and a 4 inch, 8 ohm speaker, both provided.
