Dual Power Binocular Stereo Microscope Track Stand 1X and 3X Objective Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8120

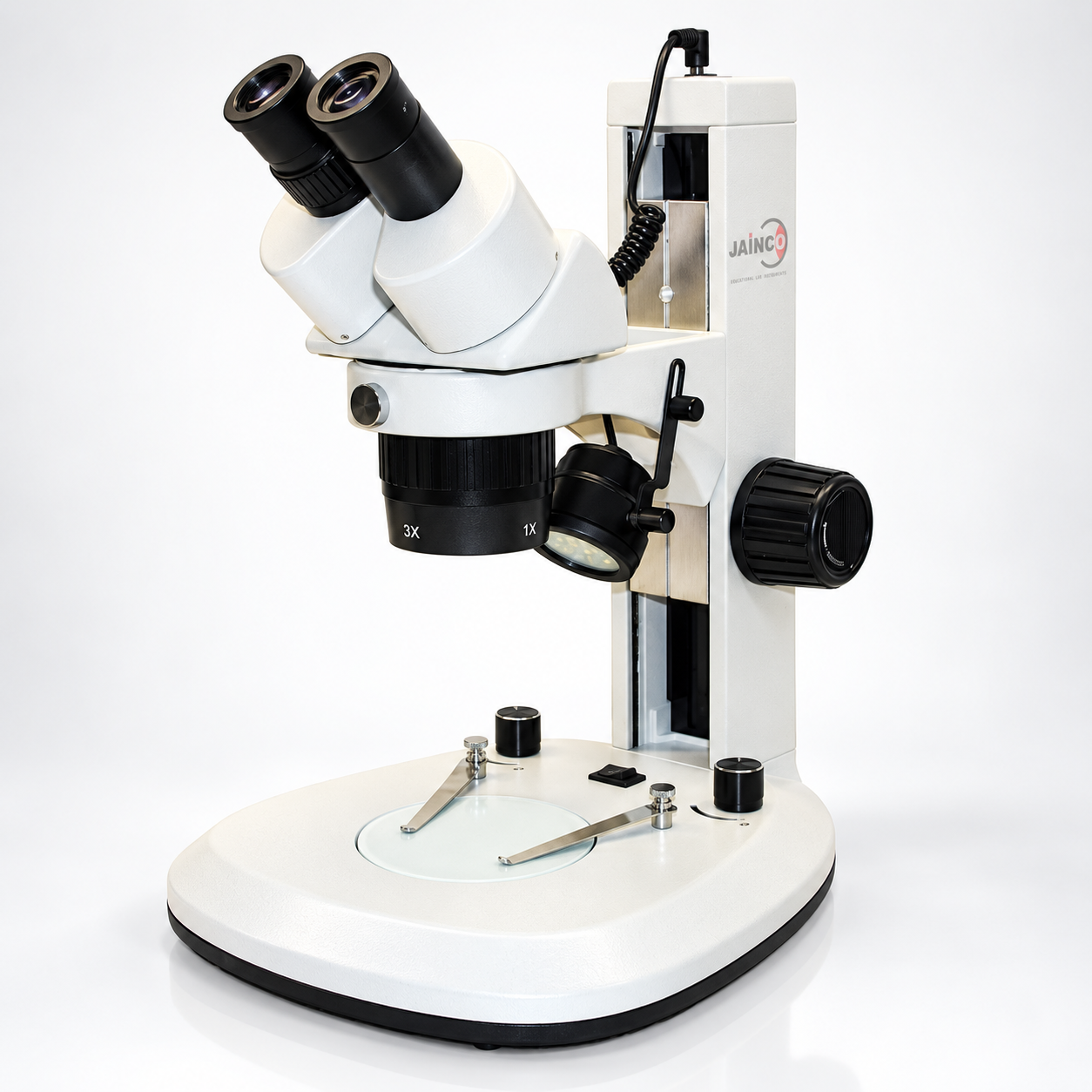

The Dual Power Binocular Stereo Microscope Track Stand 1X and 3X Objective (SKU JA-M-8120) is supplied by JaincoLab for dissection and for the surface study of rocks and minerals where a larger gap under the objective helps. The long track stand gives a 100 mm working distance, and a turret switches the 1x and 3x objectives for 10x and 30x with WF10x high-eyepoint eyepieces.
Specifications
For the 1x/3x track stand model the listing gives these values.
| Product | Dual Power Binocular Stereo Microscope Track Stand 1X and 3X Objective |
| SKU | JA-M-8120 |
| Magnification | 10x and 30x; 15x and 45x with optional WF15x; 20x and 60x with optional WF20x |
| Stand | Long track stand; large, thin base |
| Working distance | 100 mm |
| Head | Binocular, inclined 45 degrees, rotates 360 degrees; IPD 55-75 mm |
| Eyepieces | Paired WF10x, high eyepoint; diopter on left tube, +/-5 |
| Objectives | 1x and 3x on a turret |
| Illumination | 3-way LED, transmitted, incident or dual, intensity control |
| Power | Listed as 110 V |
| Stage | Reversible black/white plate and frosted glass plate; lock-on clips |
| Body and packing | Cast aluminium, grey enamel; fitted foam box, dust cover, manual |
Uses of the 10x and 30x track stand stereo microscope
- Dissection of larger specimens with room for instruments
- Rock and mineral surfaces at 30x under incident light
- Tall samples that do not fit under a standard stand
- Up to 60x with the optional WF20x eyepieces
Scope of supply and ordering
One unit comes in a fitted foam box with the WF10x pair, both stage plates, dust cover and manual. Optional eyepieces, supply voltage, units and delivery are confirmed on the quotation.
Frequently asked questions
How does it compare with the 1X and 2X objective track stand model?
Both have the 100 mm working distance and the same head and lighting; this one uses a 3x objective, so its higher setting is 30x instead of 20x.
What range do the optional eyepieces give?
WF15x eyepieces give 15x and 45x, and WF20x eyepieces give 20x and 60x with the 1x and 3x objectives.
Related products
- Dual Power Binocular Stereo Microscope Track Stand 1X and 2X Objective
- Dual Power Binocular Stereo Microscope Track Stand 2X and 4X Objective
- Dual Power Binocular Stereo Microscope 1X and 3X Objective
- Binocular Stereo Microscope Frosted Glass Plate 1x and 3x Objective
All track stand and standard stereo models are listed in the microscope range.
Request a quote
For a quotation on the track stand 1X and 3X objective stereo microscope, send the quantity and destination through the contact page. For tender or project supply, see our tenders page.
