Human Ear Model, 3x, 4 Parts Manufacturer,Supplier and Exporter in India

Human Ear Model, 3x, 4 Parts

Product Code : JA-EM-323

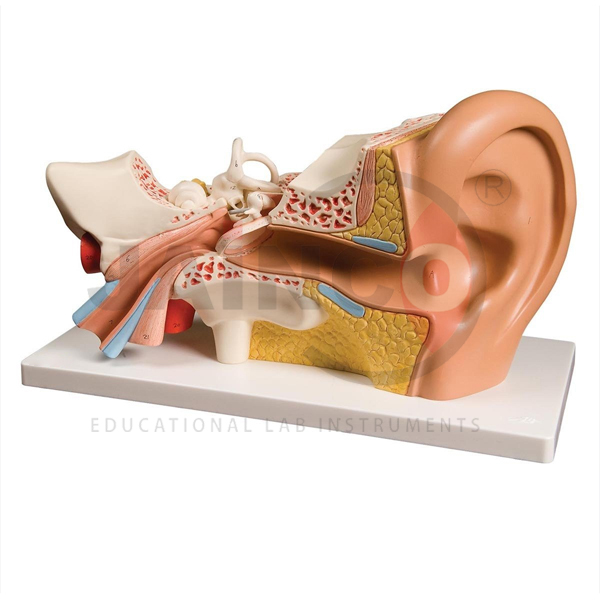

The Human Ear Model, 3x, 4 Parts is an enlarged teaching model of the external, middle and inner ear. It is built at a nominal three times life size. The eardrum with the ossicles and the labyrinth elements can be taken out. Students can follow the path of sound from the outer ear to the inner ear and study each part on its own.

Specifications of the enlarged human ear model

Product codeJA-EM-323
EnlargementNominal 3 times life size*
Parts4*
Removable partsEardrum with the ossicles; labyrinth elements*
Structures shownExternal and inner ear, with the eardrum and ossicles of the middle ear
Teaching useENT, audiology, nursing and biology teaching
ManufacturerJaincoLab, Ambala, India

* Standard JaincoLab specification for new builds.

Teaching hearing with the enlarged ear model

  • Path of sound. Students trace sound from the outer ear to the eardrum. They then lift out the eardrum with the ossicles and follow the chain to the inner ear.
  • Air and bone conduction. Strike a Tuning Fork and hold it beside the ear, then press its stem on the bone behind it. Use the model to show how each route reaches the cochlea.
  • Real size and enlarged. Pass round the life-size Anatomical Ear Model, Life Size, One Piece so students see how small the real middle and inner ear are.
  • Balance. Take out the labyrinth elements and point out the semicircular canals. Link them to dizziness after spinning round.

Frequently Asked Questions

How does a hole in the eardrum affect hearing?
The eardrum vibrates with sound and passes the movement to the ossicles. A hole makes it vibrate less well, so sounds seem quieter, usually only until it heals. On the model, students lift out the eardrum with the ossicles to see how the two work together.

What does the Eustachian tube do?
It joins the middle ear to the back of the nose and throat. It opens when we swallow or yawn, so the air pressure on both sides of the eardrum stays equal. That is why ears pop in an aircraft or on a hill road.

Where in the cochlea are sounds turned into nerve signals?
In the organ of Corti, which runs along the inside of the cochlea. Its hair cells bend as the fluid moves and send signals along the cochlear nerve. High-pitched sounds act near the base of the cochlea and low-pitched sounds near its tip.

How do the ossicles make sound stronger?
The eardrum is much larger than the oval window, where the stapes sits. The force collected on the eardrum is therefore focused onto a small area. The ossicles also act as levers. Together they raise the pressure enough to move the fluid of the inner ear.

Which parts of the enlarged ear model come apart?
The model is made in 4 parts. The eardrum with the ossicles and the labyrinth elements can be taken out, so the middle and inner ear can be studied on their own. Ask us for the full parts list of the current build when you enquire.

Why choose an enlarged ear model rather than a life-size one?
The middle and inner ear are tiny in life, so their parts are hard to see from the back of a class. At three times life size the ossicles, cochlea and canals are easier to point out and name. Pair it with a life-size model to show the real proportions.

Other ear models and aids

See the ENT Models range and more teaching models from JaincoLab, an anatomical models manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.
