Electronic Total Station Manufacturer,Supplier and Exporter in India

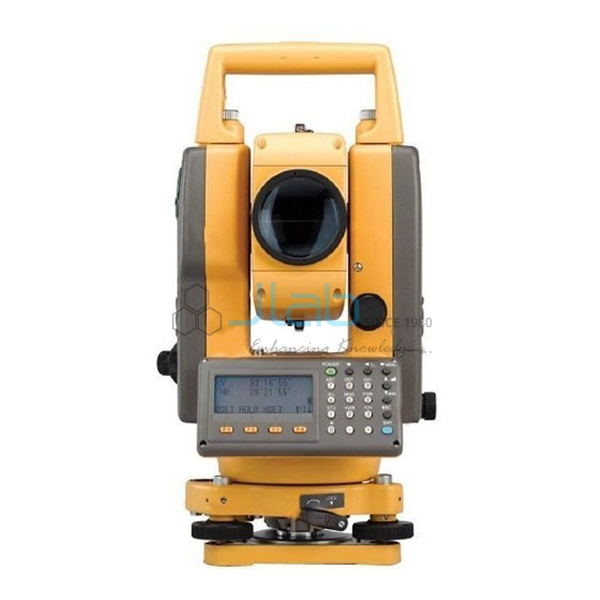

Electronic Total Station

Product Code : JA-SI-1713

The Electronic Total Station (SKU JA-SI-1713) combines an electronic theodolite with an infrared distance meter, measuring angles and distances in one set-up and storing the readings. This electronic total station is listed in 2 second and 5 second versions and is supplied by JaincoLab to civil engineering colleges, polytechnics, survey firms and project sites that need traversing, detail survey and setting out.

Specifications

The instrument has a 1°30' field of view and 1.0 m minimum focus, reads angles in degree, gon or mil with 1" or 5" display resolution and 2" or 5" accuracy by absolute encoding, and measures distance by modulated infrared light with 2 mm + 2 ppm accuracy.

Product Electronic Total Station
SKU JA-SI-1713
Field of view 1°30'
Minimum focus 1.0 m
Angle units Degree, gon or mil, selectable
Angle display resolution 1" / 5"
Angle accuracy 2" or 5" (two versions)
Angle measuring mode H and V, absolute encoding
Distance measurement Modulated infrared light
Range, 1 prism 1.8 km (2" version) / 1.6 km (5" version)
Range, 3 prisms 2.6 km / 2.3 km
Distance accuracy 2 mm + 2 ppm
Distance units Metres or feet, selectable
Distance display resolution 0.001 m fine; 0.01 m tracking
Atmospheric correction Parameters entered, corrected automatically
Interface RS-232, 1200 to 115200 bps
Display Graphic dot-matrix LCD, 20 characters x 6 lines, illuminated
Keyboard Dual face, alphanumeric, 28 keys
Power Detachable battery

Applications of the electronic total station

Because it records angles and distances together and can pass the data to a computer, a total station is used for traverse and detail surveys, contour and topographic mapping, setting out of buildings and roads and the total-station exercises now included in surveying courses.

  • Traverse, detail and topographic surveys
  • Setting out of buildings, roads and pipelines
  • Contour and area computation from stored points
  • Total station practicals in civil engineering and polytechnic courses

Scope of supply and ordering

The listing covers the electronic total station in the 2" or 5" version with detachable battery. Charger, prisms, prism poles, tripod, data cable and software are confirmed on the quotation.

Minimum order quantity, lead time and packing are confirmed on each quotation for the version, the number of instruments and the delivery destination.

Frequently asked questions

Which accuracy versions are listed?
The total station is listed with 2" and 5" angle accuracy.

How far does it measure with prisms?
1.8 km (2" version) or 1.6 km (5" version) on one prism, and 2.6 km or 2.3 km on three prisms.

Can data be transferred to a computer?
Yes. It has an RS-232 interface with baud rates from 1200 to 115200 bps.

Related products

Electronic theodolites, levels and laser distance meters are listed in the JaincoLab surveying instruments range.

Request a quote

To order the Electronic Total Station, send the version, accessories, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
