Galvanometer Manufacturer,Supplier and Exporter in India
Product Code : JL-LEP-10414

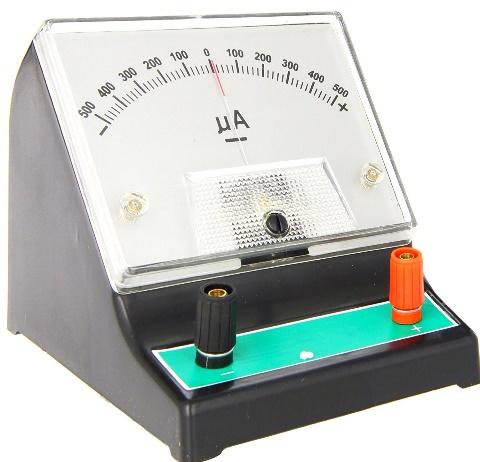

The Galvanometer (SKU JL-LEP-10414) is an analog, general-purpose galvanometer that measures small electrical currents from -500 to +500 µA with 10 µA divisions and ±2.5% full-scale accuracy. The centre-zero scale of this galvanometer shows both the size and the direction of a current, which makes it the usual detector in electromagnetic induction practicals. JaincoLab manufactures it in India for school and college physics.
Specifications
The galvanometer reads -500 to +500 µA full scale in 10 µA steps with ±2.5% accuracy, on a dial plate of at least 95 × 85 mm in a plastic case of at least 95 × 130 × 95 mm, with colour-coded brass binding posts for 4 mm plugs.
| Product | Galvanometer |
| SKU | JL-LEP-10414 |
| Purpose | Measures small electrical current |
| Type | Analog, general-purpose galvanometer |
| Range and accuracy | -500 to +500 µA full scale, 10 µA per division, ±2.5% full-scale accuracy |
| Dial plate | At least 95 mm wide × 85 mm high |
| Case | Plastic, at least 95 mm wide × 130 mm deep × 95 mm high |
| Terminals | Threaded brass binding posts for 4 mm banana plugs; black negative/common, red positive |
| Specification reference | As per DepEd guidelines |
Applications of the galvanometer
The meter is used wherever a very small current, or its direction, must be detected, most often when a magnet moves in a coil, and also as the null detector in bridge circuits.
- Detecting induced current when a magnet is moved into and out of a coil
- Showing that the direction of induced current reverses with the direction of motion
- Using the galvanometer as a null detector in bridge and potentiometer circuits
- Measuring small currents from simple cells
- Electromagnetic induction practicals in secondary and college physics
Scope of supply and ordering
The listing covers one analog galvanometer as described in the specification table. Leads, coils, magnets and quantities are confirmed on the quotation.
MOQ, lead time and packing are set on each quotation for the number of meters and the delivery destination. JaincoLab supplies physics laboratories, colleges and export buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What range does the galvanometer cover?
-500 to +500 µA full scale, with 10 µA per division.
How accurate is it?
±2.5% of full scale.
What terminals does it have?
Threaded brass binding posts for 4 mm banana plugs, black for negative/common and red for positive.
What is it mainly used for?
Measuring small electrical currents, for example induced currents in a coil.
