Galvanometer Kit Manufacturer,Supplier and Exporter in India
Product Code : SCL-PLE-12367

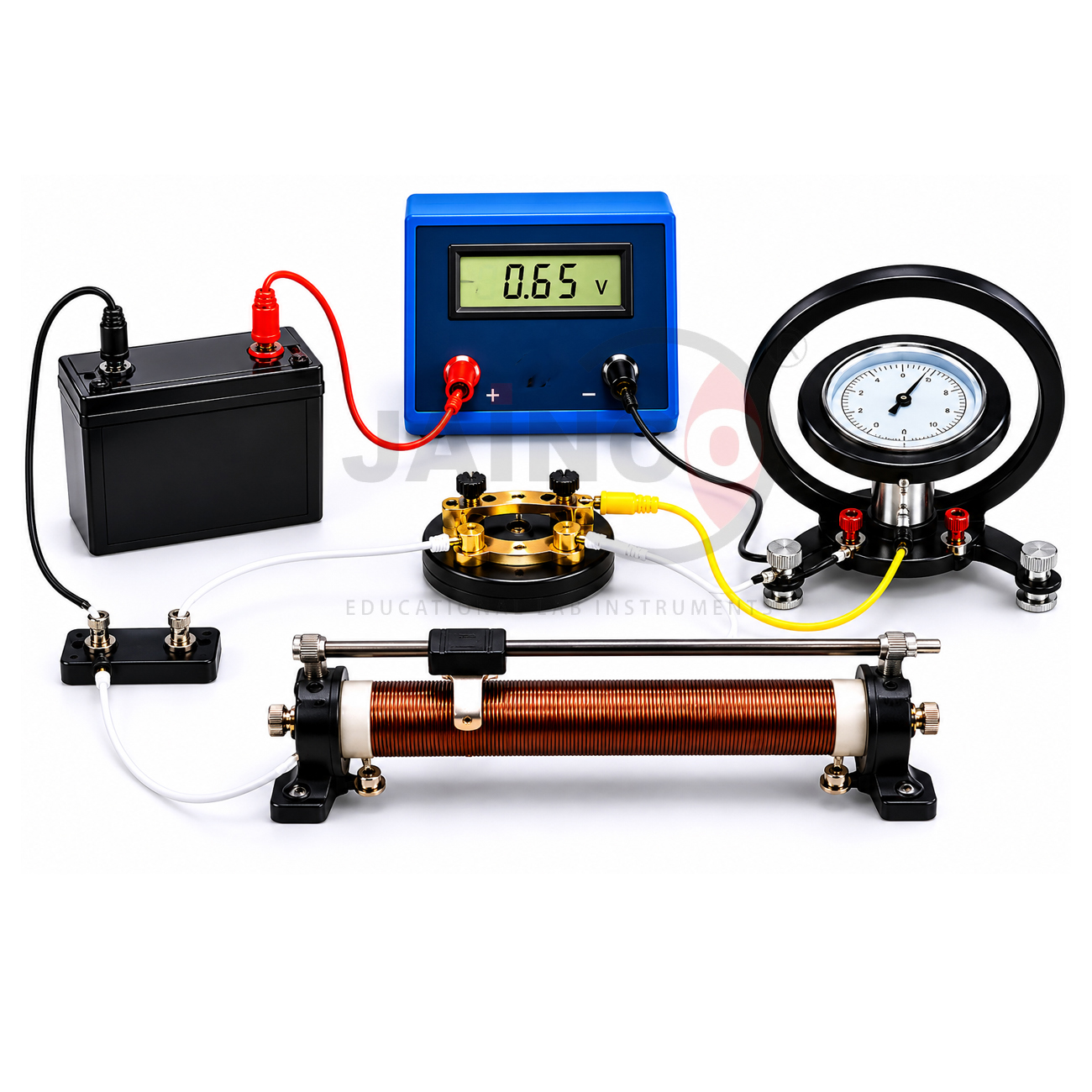

The Galvanometer Kit (SKU SCL-PLE-12367) is a galvanometer kit for converting a galvanometer into an ammeter and a voltmeter and for other sensitive current measurements in school and college physics. It is built around a DC 30-0-30 galvanometer with a 20 microamp per division scale, a decade resistance box, a 22 ohm rheostat, a 1.5-12 V power supply and digital meters. JaincoLab supplies it for current electricity practicals.
Specifications
The kit comprises a DC 30-0-30 galvanometer at 20 microamps per division, a 1.5-12 V 3 A power supply, a resistance box of 10 x 0.1, 10 x 1, 10 x 10, 10 x 100 and 10 x 1000 ohm, a 36 V 0-3 A DC switch, a 22 ohm 3.3 A rheostat, a 0-10 A digital ammeter, a 0-5 V digital voltmeter, leads, a metric ruler and a wire diameter gauge.
| Product | Galvanometer Kit |
| SKU | SCL-PLE-12367 |
| Galvanometer | DC, 30-0-30, 20 microamps per division |
| Power supply | 1.5-12 V, 3 A |
| Resistance box | 10 x 0.1 ohm; 10 x 1 ohm; 10 x 10 ohm; 10 x 100 ohm; 10 x 1000 ohm |
| Switch | DC, 36 V, 0-3 A |
| Rheostat | 22 ohm, 3.3 A |
| Digital ammeter | 0-10 A |
| Digital voltmeter | 0-5 V |
| Leads | 4 red and 4 black, 50 cm; 4 red and 4 black, 100 cm |
| Accessories | Metric ruler; four U-shaped wires with banana sockets; diameter gauge for thin wires |
Applications of the galvanometer kit
The kit is used in practicals where the galvanometer is characterised and then converted into a measuring instrument by adding a shunt or a series resistance chosen from the resistance box.
- Determining the resistance of the galvanometer by the half-deflection method
- Finding the figure of merit of the galvanometer
- Converting the galvanometer into an ammeter with a shunt resistance
- Converting the galvanometer into a voltmeter with a series resistance
- Measuring thin-wire diameter for resistivity work with the diameter gauge
Scope of supply and ordering
The listing covers the galvanometer, power supply, resistance box, switch, rheostat, digital ammeter and voltmeter, sixteen leads, metric ruler, U-shaped wires and wire diameter gauge. Spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies single kits, class sets and bulk education orders, including export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What galvanometer is included?
A DC 30-0-30 galvanometer with a scale of 20 microamps per division.
What resistance box is supplied?
A resistance box with steps of 10 x 0.1, 10 x 1, 10 x 10, 10 x 100 and 10 x 1000 ohm.
Which meters and power supply are included?
A 0-10 A digital ammeter, a 0-5 V digital voltmeter and a 1.5-12 V, 3 A power supply.
