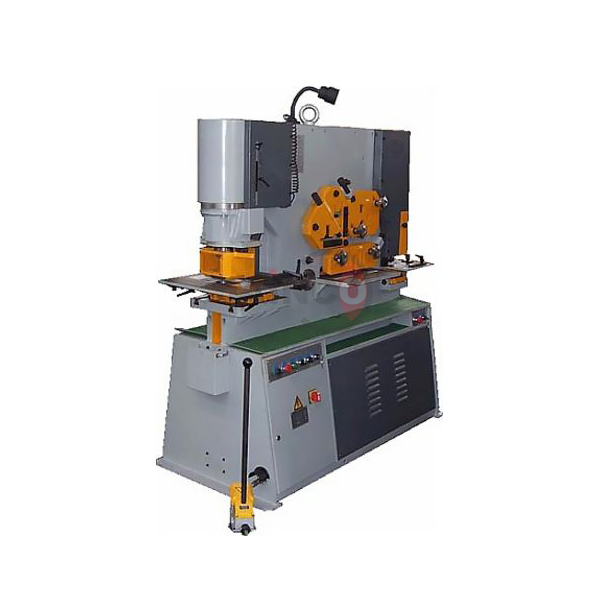

Hydraulic Steel Worker Manufacturer,Supplier and Exporter in India
Product Code : JA-WEAWLM-8728
The hydraulic steel worker is a multi-station ironworker that punches, shears flat bar, crops angle, round and square sections and notches in one machine, for fabrication workshops and training. It is listed in 60-ton and 80-ton versions with 4 kW or 5.5 kW motors, a quick-change punch holder, a goose-neck die holder up to 57 mm and ten punches and dies up to 38 mm (SKU JA-WEAWLM-8728).
Specifications
Listed specification (60-ton / 80-ton):
| Product | Hydraulic Steel Worker |
| SKU | JA-WEAWLM-8728 |
| Punching capacity (diameter x thickness) | 27 x 16 mm / 28 x 20 mm |
| Throat depth | 310 mm / 360 mm |
| Cycles per minute (20 mm stroke) | 48 (24 cycle) |
| Flat bar shearing | 250 x 16 and 400 x 8 mm / 330 x 16 and 480 x 12 mm |
| Angle cutting 90° | 125 x 12 mm / 140 x 12 mm |
| Angle cutting 45° | 70 x 8 mm / 80 x 8 mm |
| Round and square bar | 45 mm round, 40 x 40 mm square / 50 mm round, 50 x 50 mm square |
| Notching (thickness, width, depth) | 10, 58, 105 mm / 13, 57, 100 mm |
| Sheet bending (optional) | 500 x 3 mm |
| Motor | 4 kW / 5.5 kW |
| Net weight | 1600 kg / 2450 kg |
| Dimensions (L x W x H) | 1700 x 780 x 1680 mm / 1920 x 790 x 1800 mm |
| Included | 10 punches and dies up to 38 mm; toolkit; operator manual; halogen light on magnetic base; two foot pedals; 1 m auto cut-length stop |
Scope of supply and ordering
The listing covers one hydraulic steel worker in the 60-ton or 80-ton version, supplied by JaincoLab. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
Which versions are listed?
60-ton and 80-ton versions, with 4 kW and 5.5 kW motors.
What operations can it do?
Punching, flat bar shearing, angle and section cutting, and notching; sheet bending is an option.
What tooling is included?
Ten punches and dies up to 38 mm, a toolkit and an operator instruction manual.
