Industrial Double Bridge Manufacturer,Supplier and Exporter in India
Product Code : JA-SI-8046

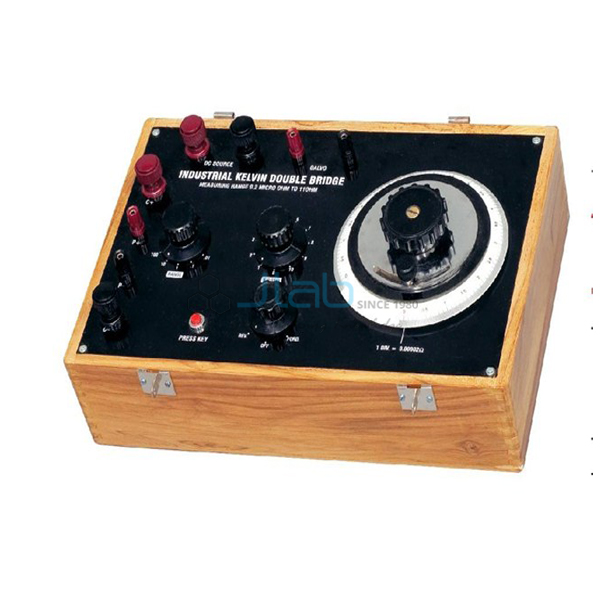

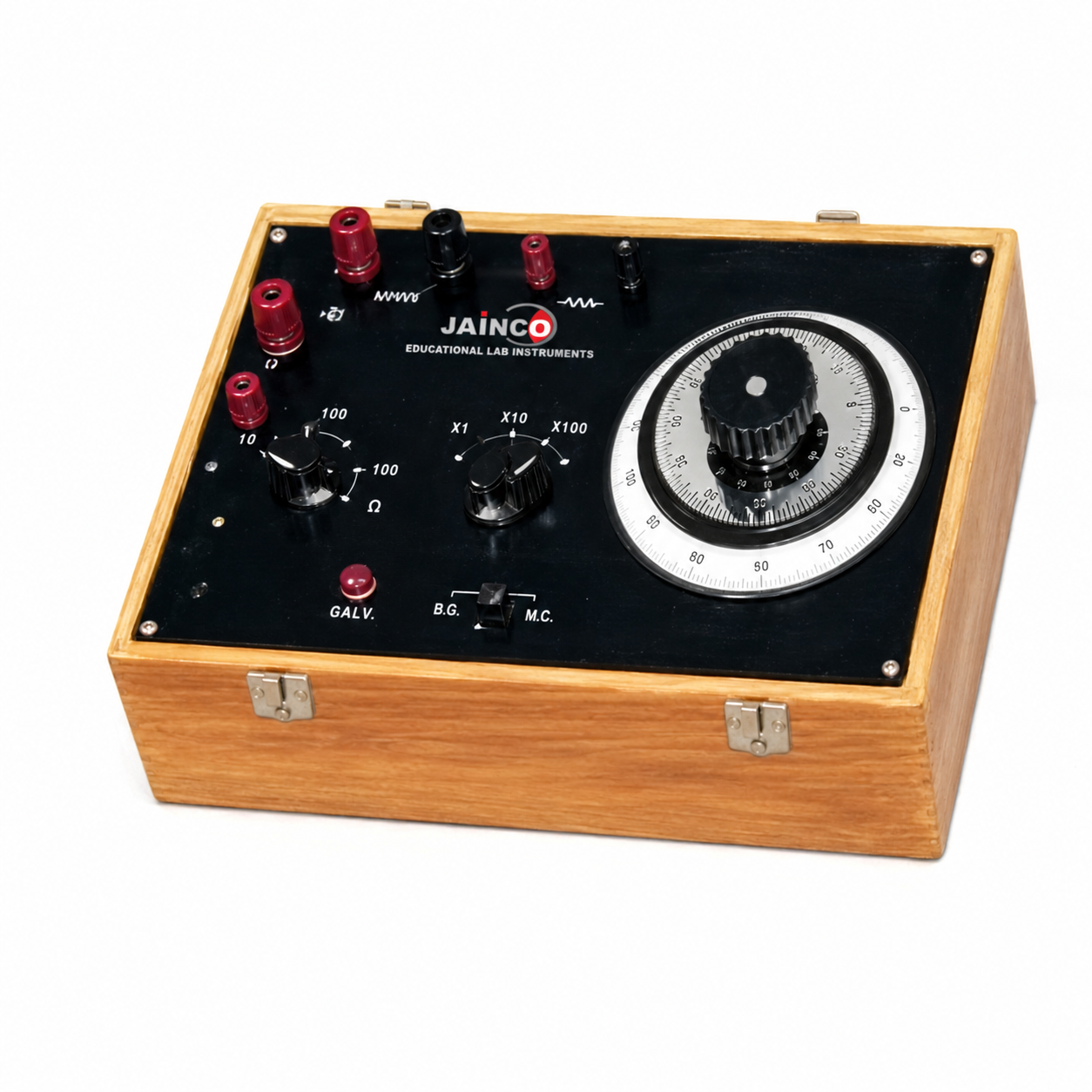

The Industrial Double Bridge (SKU JA-SI-8046) measures low resistances from 2 micro-ohm to 11 ohm, where lead and contact resistance would upset an ordinary Wheatstone bridge. Its standard resistance is ten manganin coils of 0.01 ohm on a rotary dial plus a circular slide wire of 0.01 ohm total with 500 divisions, so each division is 0.00002 ohm on the normal range. A single rotary switch gives five multiplying ratios, and separate current and potential terminals are provided.
Specifications
Standard resistance, ratios and ratings as listed:
| Product | Industrial Double Bridge |
| SKU | JA-SI-8046 |
| Standard resistance | Ten 0.01 ohm coils on a rotary dial plus a 0.01 ohm circular slide wire, 500 divisions (0.00002 ohm each) |
| Multiplying ratios | Five, single rotary switch: X100, X10, X1, X0.1, X0.01 |
| Range | 2 micro-ohm to 11 ohm |
| Current | 10 A intermittently, 5 A continuously |
| Accuracy | +/-0.5% for currents of 5 A to 10 A |
| Coils | Manganin |
| Case | Bakelite panel in a teak wood box, current and potential terminals, battery and galvanometer terminals and push buttons |
Measurements it is suited to
The listing names these uses:
- Resistance of wires and cables
- Resistance of transformer windings
- Relay contact resistance
Scope of supply and ordering
The bridge is supplied in its teak box; battery, galvanometer, current source, quantities and packing are confirmed on the quotation.
Frequently asked questions
What range does the industrial double bridge measure?
From 2 micro-ohm to 11 ohm.
What current can it carry?
10 A intermittently and 5 A continuously; accuracy is +/-0.5% for currents of 5 A to 10 A.
Why does it have separate current and potential terminals?
So that lead and contact resistance do not affect the low-resistance reading.
Related products
- Portable Wheatstone Bridge
- Portable Wheatstone Bridge with Loop Test
- Double Portable Bridge
- Callender & Griffith Bridge
Other bridges are listed in our scientific instrument range.
Request a quote
To order the Industrial Double Bridge, give the quantity on our contact page. Buying under a laboratory tender? Use our tenders page.
