My Block Dry Bath Manufacturer,Supplier and Exporter in India

Product Code : JA-LE-8184

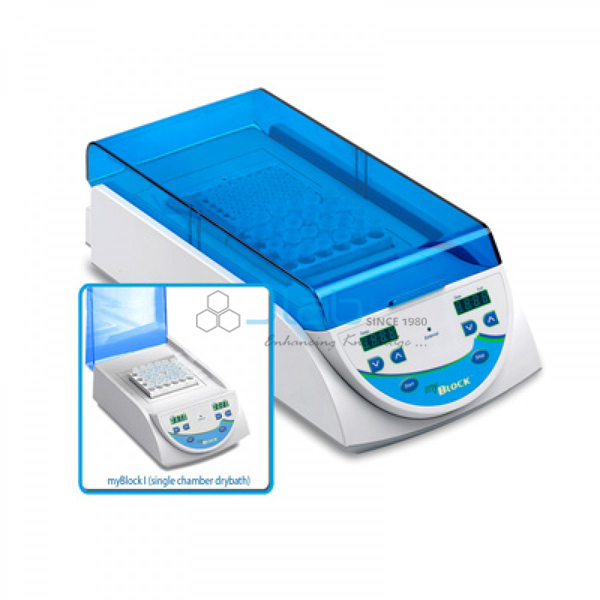

The My Block Dry Bath (SKU JA-LE-8184) is a digital dry bath with lid, made in single and dual block models. Its transparent, hinged lid keeps a layer of warm air over the block, which improves uniformity, limits temperature layering and cuts heat loss. Microprocessor control gives timed or continuous heating from ambient +5 to 105°C. It is supplied by JaincoLab.

Specifications

Control values are common to both models:

Product	My Block Dry Bath
SKU	JA-LE-8184
Temperature range	Ambient +5 to 105°C
Accuracy / uniformity	+/-0.3°C / +/-0.2°C
Setting step	0.1°C
Timer	Off, or 1 min to 99 h 59 min
Blocks	Flip-over universal blocks: 0.5-2.0 ml tubes, or 0.2 ml tubes, PCR strips and (dual model) a PCR plate; other blocks for tubes up to 50 ml
Lid	Transparent, hinged; opens to the rear or lifts off for tall tubes
Optional probe	External feedback probe placed inside a sample tube
Size (w x d x h)	18 x 25 x 13 cm or 16 x 36.5 x 13 cm, by model
Weight	4 to 4.5 kg, by model
Electrical	120 or 230 V, 50-60 Hz

Scope of supply and ordering

State the single or dual block model and whether you want the flip-over blocks, other tube blocks or the sample probe; quantity, packing and lead time follow on the quotation.

Frequently asked questions

What does the transparent lid do?
It holds a warm air layer over the block, which improves uniformity, reduces temperature stratification and reduces heat loss; it lifts off for taller tubes.

Can the actual sample temperature be controlled?
Yes, with the optional external probe placed inside a sample tube the unit controls and displays the real sample temperature.

Can the dual model take a PCR plate?
Yes, the flip-over block of the dual block model accepts a PCR plate as well as 0.2 ml tubes and strips.
